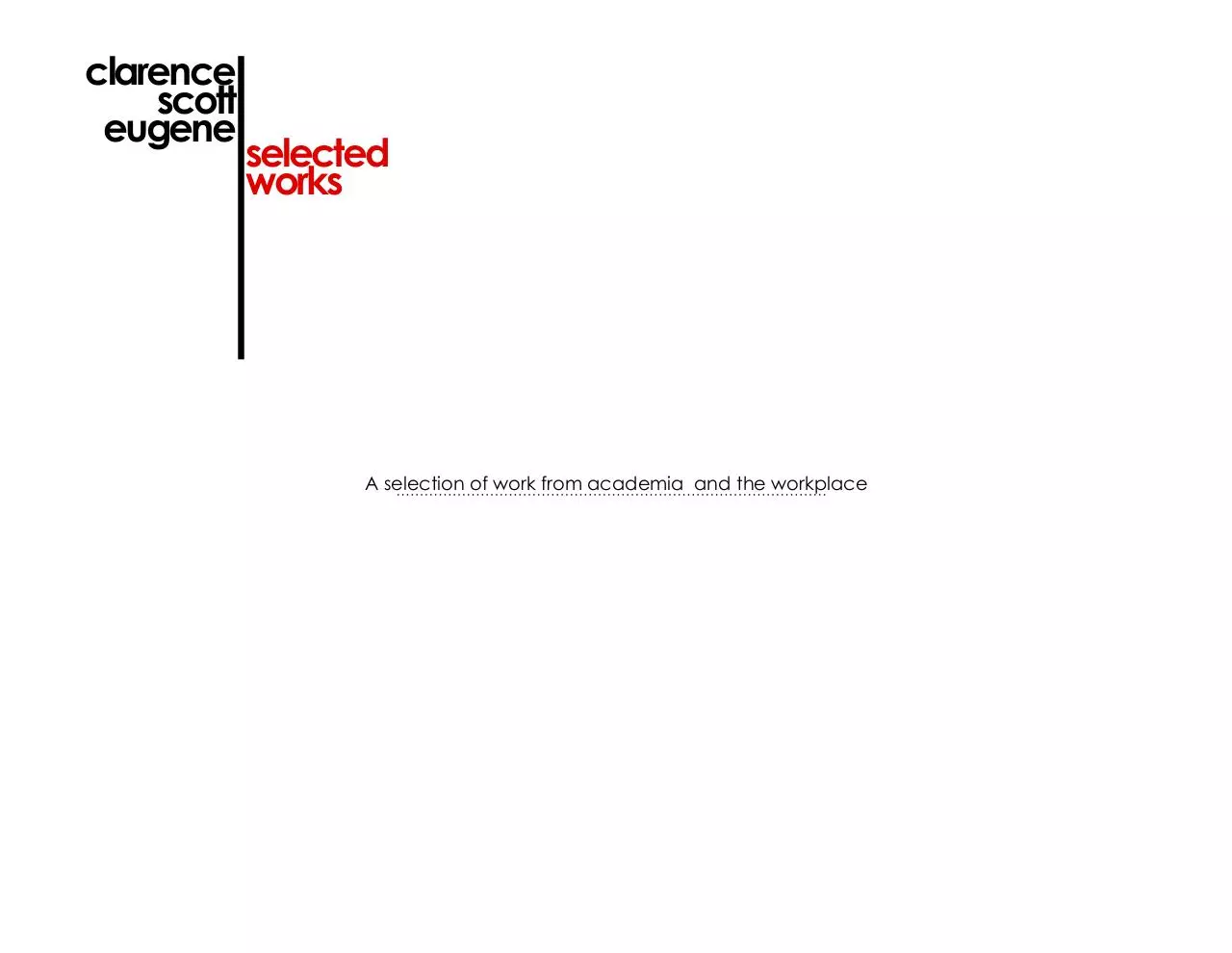

A selection of work from academia and the workplace

table of contents
year two
year three
year four
year five: thesis
photography work
graphic desgin work
work expereince

credits: resume
Southern University School Of Architecture (five year)
2005 to 2010
Professional Bachelors Degree of Architecture (B.Arch)
Degree completed with a cumulative GPA of 3.03
Delgado Community College
1999 to 2004
Associate’s degree for Architecture Design/Construction
Degree completed with a cumulative
GPA of 3.75


EJA Partners, LLC
May 2008 to present
Designer & Draftsman
Full-Time employment
Duties include but not limited to: working under an Engineer as a
Designer. “M.E.P.” design and drafting, architectural design, site
planning, and client coordination.
Hewitt-Washington & Associates
June 2007 to August 2007
Student Architect Intern.

Full-Time employment
Duties included: working under a Principal Architect as an
AutoCAD Draftsman, As Builts, Sitework, 3D modeling and Drafting

Xavier University Facility Planning and Management
March 2004 to September 2004

Full-time employment
Duties included: working under a Project Manager as an AutoCAD Draftsman, As Builts, Sitework, and AutoCAD drafting for the

U+CDRC (Urban + Rural Community Design Research Center)
Provided specific technical assistance in architectural design
and Planning as well as other community service for this outreach group
Design Build Institute of America Student Organization (DBIAS)

Alpha Phi Alpha Fraternity, Inc. (Sigma Lambda Chapter Member)
Hand Drafting . AutoCAD . Revit Architecture . Google SketchUp . 3D Max Design Studio . Adobe Photoshop . Adobe Lightroom . Acrobat Professional . Microsoft Office . Digital Photography . Graphic Design . Presentation Boards.
Architectural Graphic Standards . Adobe InDesign CS5 . Adobe
Illusrator . Autodesk Impression 3 . NFPA 101 . IBC 2006/2009 . UL
Fire Resistance 2008 . UDC .
Marion Bracy, VP Facility Planning & Management
Xavier University of Louisiana
Lonnie Wilkinson AIA, NOMA Dean of Architecture
Southern University of Baton Rouge and A&M College

clarence scott eugene III
13726 north lemans street
new orleans, louisiana 70129
(504) 458.8792

year two: southern university school
of architecture

This lightrail design project was a
second year design project and the
concept is based on the motion and
structure of eagle’s wings.
The project had to be manually done
as students were not allowed to used
computers to design.

lightrail transit hub project

parti model 1

1st floor plan sketch

monorail track
site sketch

parti model 2
canopy sketch
elevation sketch
parti model 3

transit hub entry

The above models are three different
parti models that showcase the lightrail
transit in its early stages on the proposed terrain.

year three: southern university
school of architecture

This 3rd year project was
for the first level computer
graphics course. The task was
to design a news set for a
sports studio.

sports news studio project

front elevation

3d massing models

piet mondrian concept

The platform used to design
the studio set was 3D Studio

birds eye view

concept massing

concept massing

desk view concept massing

The 4 massing
models on the left
were composed
based on the
various conepts
These massings
were for a group
project for the design of K-12 school
in Parramore, FL.
THe platforms used
for the modeling
of these massings were Google
Sketch-up and 3D
Studio Max.

year three: southern university
school of architecture
conceptual process

MLK wellness center

The concept for this wellness center
stems from the hydroplane , meaning
where an object interacts with water
in a single directional path sending
the water up and outward into a new
direction away from the object acted
on it.

birds eye view

1st floor plan
This sustainable designed
wellness center was designed to hold many different types of events.
Spaces for a MLK museum,
music and televison studios are some of the areas
within this building atypical
of a wellness center.
Indoor / outdoor running
tracks along with basketball courts and a private
women’s training center
are the other spaces that
round out the program for
the center.

northwest view

year four: southern university
school of architecture
6O Hotel

high rise comprehensive project
The concept of the high rise hotel stems
from the equalatirel triangle and minimalistist architecture along with 60’s

hotel typical floor plan

view at entry
hotel massing

northeat view of hotel

southwest view of hotel

view from north street level

year four: southern university
school of architecture

River 42 Office Building

high rise comprehensive project
This1,000,000 square foot office building
and the 500 guest room business hotel are elavated on the city block with
retail shopping at ground level in Baton
Rouge, Louisiana.

northeast view

hvac diagram

The concept for the River 42 building
was to un-vail. The design was design
to showcase the inner working of the
building itself, as well as the employees

view into plaza

massings of building of site

thesis: outpateint clinic for new
orleans east|post-katrina

The proposed clinic’s concept is based
on the “Rod of Asclepius”. The implication of this concept was succeeded
though creating curved walls and circulation which represents the motion and
form of the snake. The linear elements
on the structure represent the rigid path
of the staff.

conceptual process

entry view

roof deck view

rear lake view

3d section

4 stories
49,000 square feet
24,000 square feet exspansion space
serves more the 200,000 patients yearly.

Renders: other renderings from
school work

library corridor

medical clinic lobby

eatery interior view

pedestrian crossing bridge

sketch master plan

high rise office building

photography: freelance photography


pedestrian bridge

dinner napkin

lighthouse in aruba

jackson square

wall in french quarter

louisiana state capitol

graphice design: freelance design


t-shirt designs

logo designs

workplace: internship work
6 stories
106,651 square feet
Total cost: $15,514,000.00

Xavier university Louisiana Planning Department
Norman C. Francis Science Building,
Xavier University

north view

southeast view

typical floor plan
My part on this project was to draft AutoCAD as builts of the floor
plans of the already constructed building.

workplace: internship work
Evergreen Baptist Church EJA partners, LLC
11,831 square feet
in Paulina, Louisiana


site plan

southwest view floor plan

workplace: intership work
Mount Calvary Bapitist Church addition
414 Weeks Street
New Iberia, Louisiana

EJA partners, LLC

7,162 square feet
consists of office spaces, classrooms,
and a multipurpose area

north elevation

south elevation

weeks street view of mount calvary

Thank you for viewing


(504) 458.8792
