ARB CKMTA12
COMPRESSOR

ARB SIGNAL
CONNECTOR
2 PIN

SHEET 5

*
*
*

ARB SUPPLY LOOM

FUSE BLOCK 2

YELLOW N/C
DARK GREEN N/C
PURPLE
BLACK

RED

SEAL AND SECURE ALL UNUSED WIRES AND CONNECTORS
N/C NOT CONNECTED
FUSE BLOCK 2 IS A BLUE SEA 2151 WITH 2 40 AMP MRBF FUSES
USE 5/16 RING TERMINALS

ARB POWER
CONNECTOR
4 PIN

ARB SWITCH LOOM

SOLENOID
CONNECTORS
NOT USED
REMOVE OR
SEAL AND SECURE
OUT OF WAY

2005 EXCURSION 2011-12
MODIFICATIONS PROJECT

5

RED

AUXILLARY
BATTERY 1

BLACK

BLACK/WHITE

GROUND BUS
AT RELAY BOXES
SEE SHEET 3

SEE SHEET 1

31 PIN
MOLEX XRC
BULKHEAD
CONNECTOR

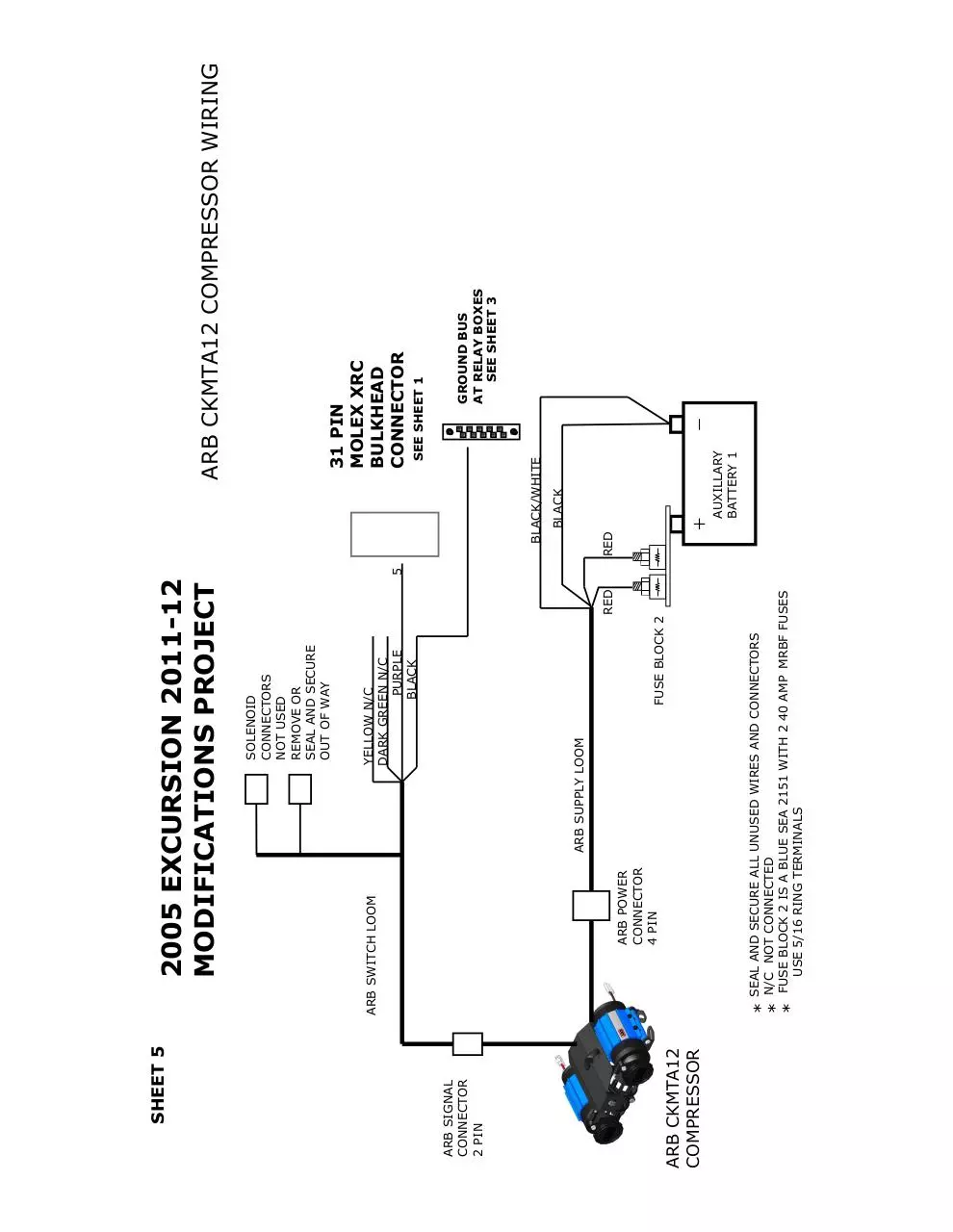

ARB CKMTA12 COMPRESSOR WIRING
