TO GROUND

TO CJB
FOG LIGHT
RELAY

12 GAUGE TXL OR GXL

BOSCH 40 AMP
5 PIN MINI RELAY

GROUND ON
INNER FENDER

30

16 GAUGE
TXL OR GXL 86

SOLDER SPLICE
IN OEM HARNESS

OEM FOG LIGHT
HARNESS

TO GROUND

TO CJB
FOG LIGHT
RELAY

12 GAUGE TXL OR GXL

BOSCH 40 AMP
5 PIN MINI RELAY

GROUND ON
INNER FENDER

30

16 GAUGE
TXL OR GXL 86

SOLDER SPLICE
IN OEM HARNESS

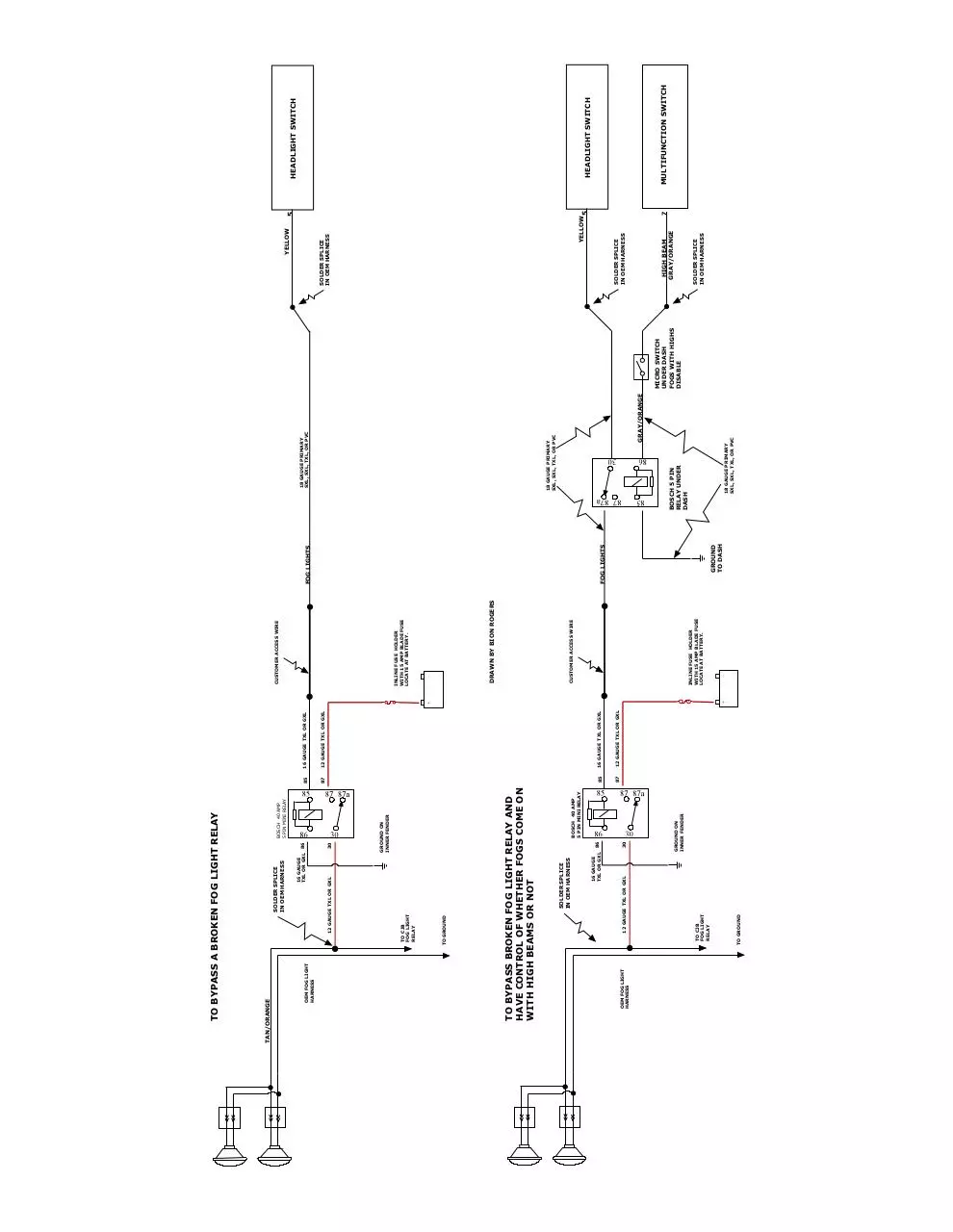

TO BYPASS BROKEN FOG LIGHT RELAY AND
HAVE CONTROL OF WHETHER FOGS COME ON
WITH HIGH BEAMS OR NOT

OEM FOG LIGHT
HARNESS

TAN/ORANGE

TO BYPASS A BROKEN FOG LIGHT RELAY

16 GAUGE TXL OR GXL

12 GAUGE TXL OR GXL

87

12 GAUGE TXL OR GXL

87

85

16 GAUGE TXL OR GXL

85

INLINE FUSE HOLDER
WITH 15 AMP BLADE FUSE
LOCATE AT BATTERY.

CUSTOMER ACCESS WIRE

DRAWN BY BION ROGERS

INLINE FUSE HOLDER
WITH 15 AMP BLADE FUSE
LOCATE AT BATTERY.

CUSTOMER ACCESS WIRE

GROUND
TO DASH

FOG LIGHTS

FOG LIGHTS

18 GAUGE PRIMARY
SXL, SXL, TXL, OR PVC

BOSCH 5 PIN
RELAY UNDER
DASH

GRAY/ORANGE

18 GAUGE PRIMARY
SXL, SXL, TXL, OR PVC

18 GAUGE PRIMARY
SXL, SXL, TXL, OR PVC

MICRO SWITCH
UNDER DASH
FOGS WITH HIGHS
DISABLE

SOLDER SPLICE
IN OEM HARNESS

HIGH BEAM
GRAY/ORANGE

SOLDER SPLICE
IN OEM HARNESS

7

5

5

YELLOW

SOLDER SPLICE
IN OEM HARNESS

YELLOW

MULTIFUNCTION SWITCH

HEADLIGHT SWITCH

HEADLIGHT SWITCH
