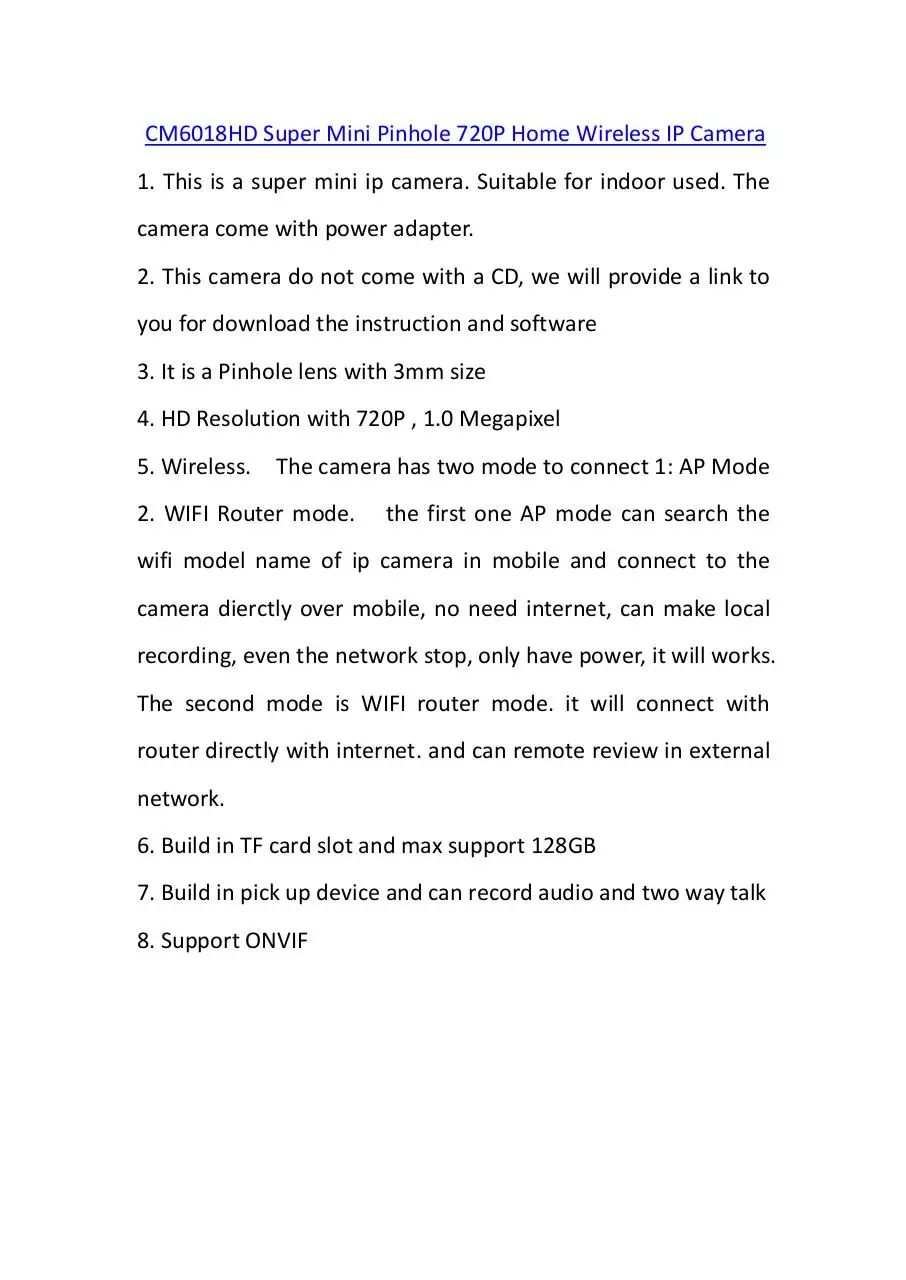

CM6018HD Super Mini Pinhole 720P Home Wireless IP Camera
1. This is a super mini ip camera. Suitable for indoor used. The
camera come with power adapter.
2. This camera do not come with a CD, we will provide a link to
you for download the instruction and software
3. It is a Pinhole lens with 3mm size
4. HD Resolution with 720P , 1.0 Megapixel
5. Wireless.

The camera has two mode to connect 1: AP Mode

2. WIFI Router mode.

the first one AP mode can search the

wifi model name of ip camera in mobile and connect to the
camera dierctly over mobile, no need internet, can make local
recording, even the network stop, only have power, it will works.
The second mode is WIFI router mode. it will connect with
router directly with internet. and can remote review in external
network.
6. Build in TF card slot and max support 128GB
7. Build in pick up device and can record audio and two way talk
8. Support ONVIF

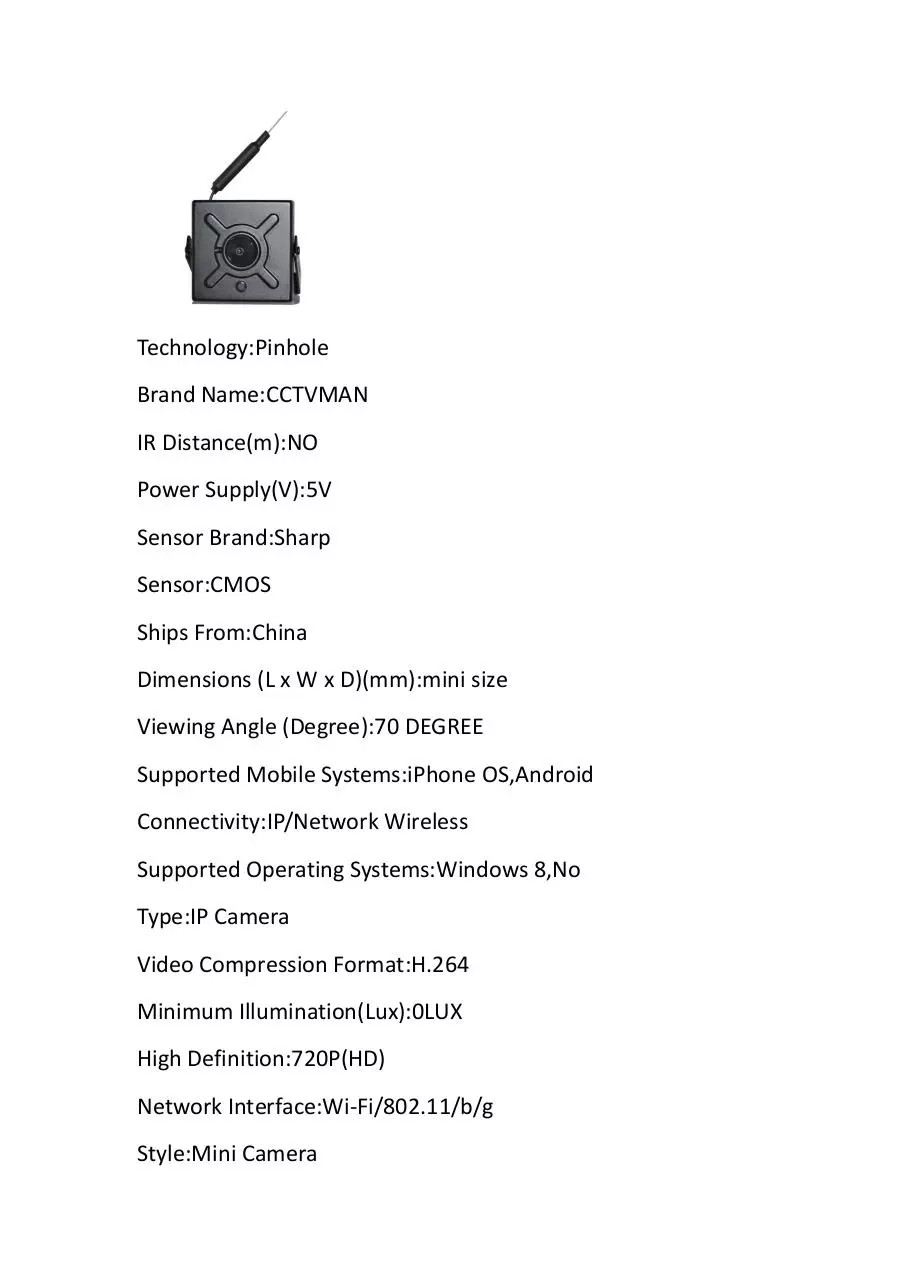

Technology:Pinhole
Brand Name:CCTVMAN
IR Distance(m):NO
Power Supply(V):5V
Sensor Brand:Sharp
Sensor:CMOS
Ships From:China
Dimensions (L x W x D)(mm):mini size
Viewing Angle (Degree):70 DEGREE
Supported Mobile Systems:iPhone OS,Android
Connectivity:IP/Network Wireless
Supported Operating Systems:Windows 8,No
Type:IP Camera
Video Compression Format:H.264
Minimum Illumination(Lux):0LUX
High Definition:720P(HD)
Network Interface:Wi-Fi/802.11/b/g
Style:Mini Camera

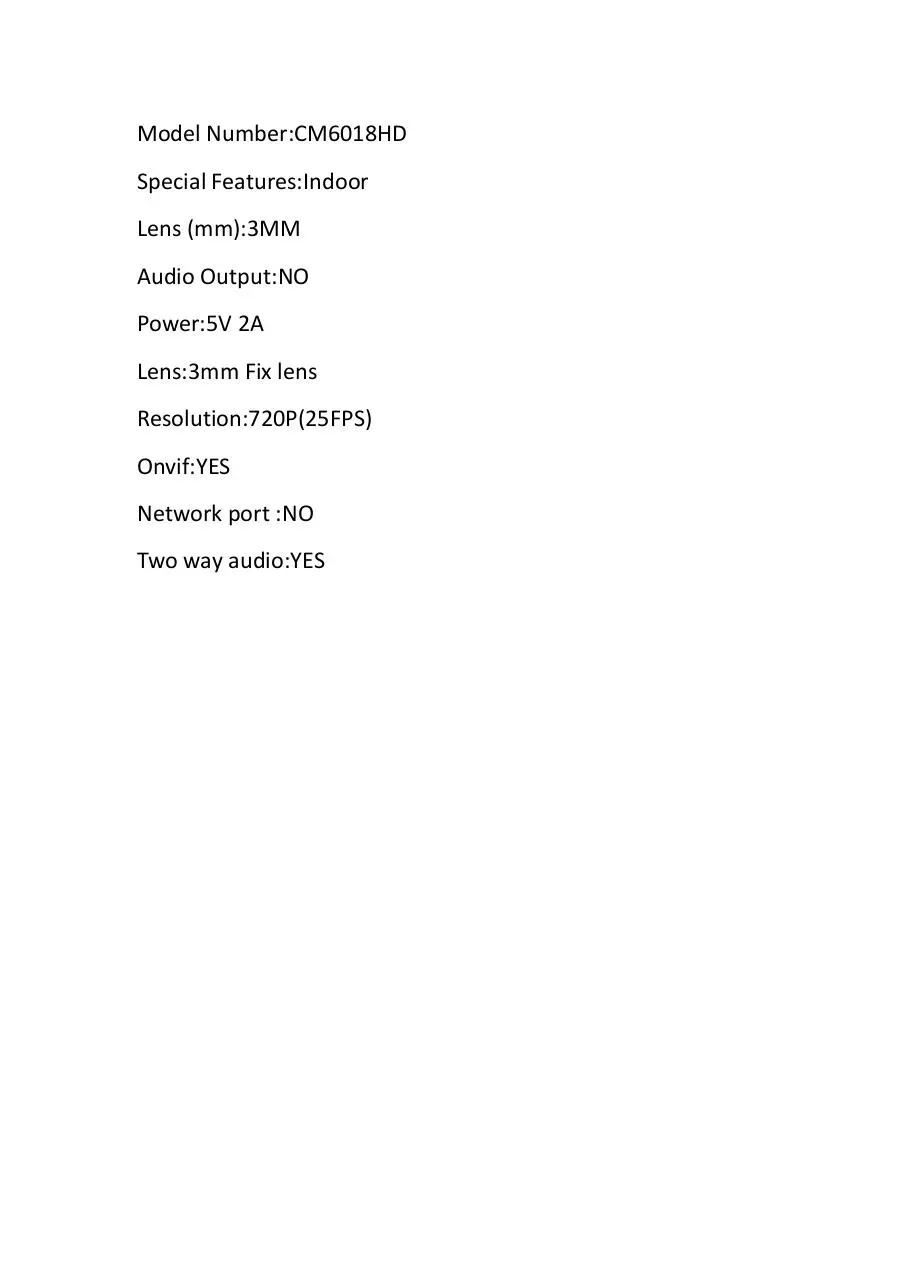

Model Number:CM6018HD
Special Features:Indoor
Lens (mm):3MM
Audio Output:NO
Power:5V 2A
Lens:3mm Fix lens
Resolution:720P(25FPS)
Onvif:YES
Network port :NO
Two way audio:YES
