electra distortion (PDF)
File information
Title: untitled.brd
This PDF 1.4 document has been generated by EAGLE Version 5.10.0 Copyright (c) 1988-2010 CadSoft / Qt 4.5.2 (C) 1992-2009 Nokia Corporation and/or its subsidiary(-ies), and has been sent on pdf-archive.com on 02/04/2011 at 02:52, from IP address 190.174.x.x.
The current document download page has been viewed 1333 times.
File size: 30.19 KB (1 page).
Privacy: public file
File preview

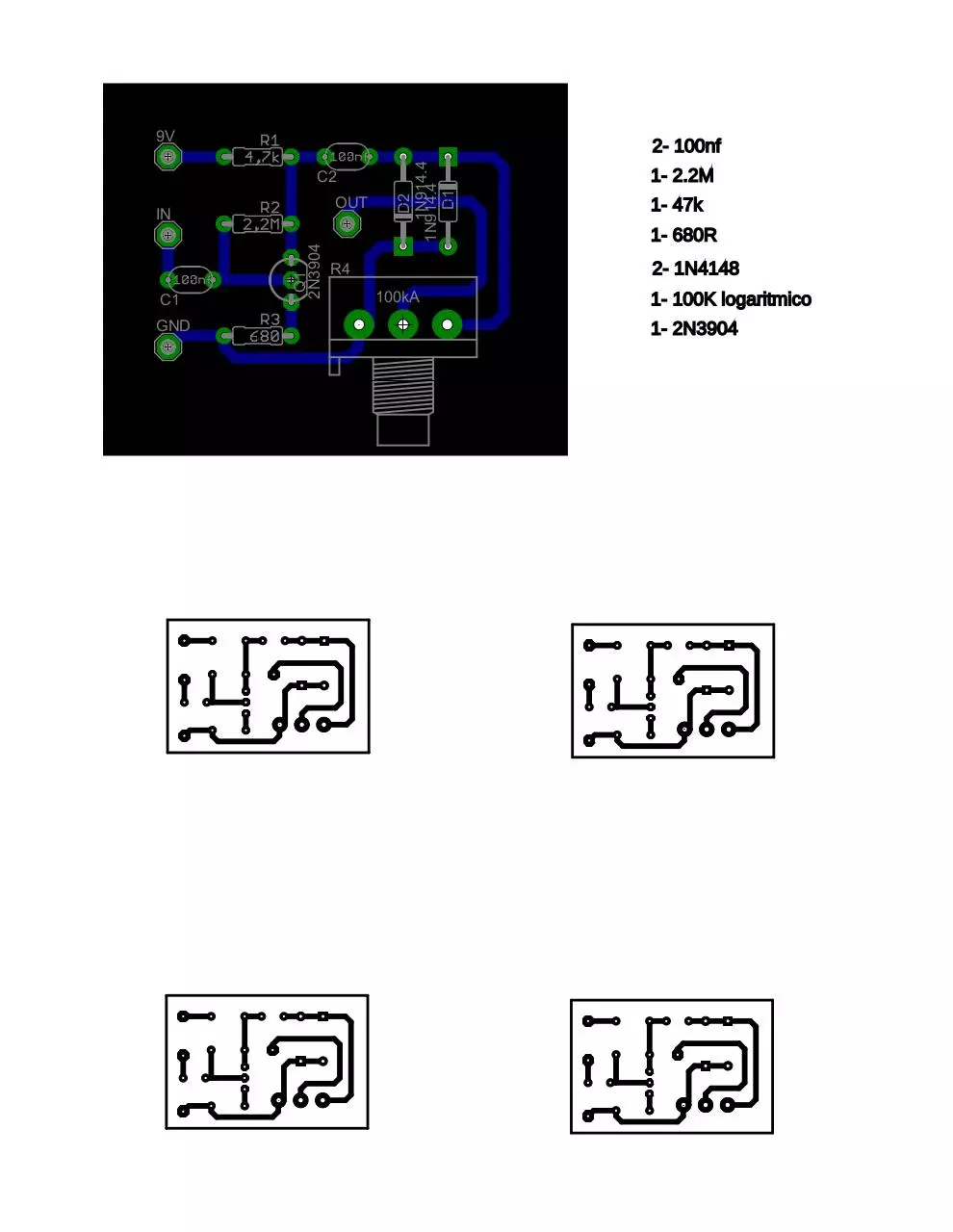

9V
C1
GND
D2
1N914.4
1N914.4
D1
C2
OUT
Q1
2N3904
IN
2- 100nf
1- 2.2M
1- 47k
1- 680R
2- 1N4148
R4
100kA
1- 100K logaritmico
1- 2N3904
