2.4GHz 8dBi Outdoor Antenna

2.4GHz 8dBi Outdoor Antenna.pdf . by 微软用户

PDF 1.5 1 page 86.57 KB Filed 15/04/2013
Download this PDF
2.4GHz 8dBi Outdoor Antenna.pdf
Web reader . 1 page

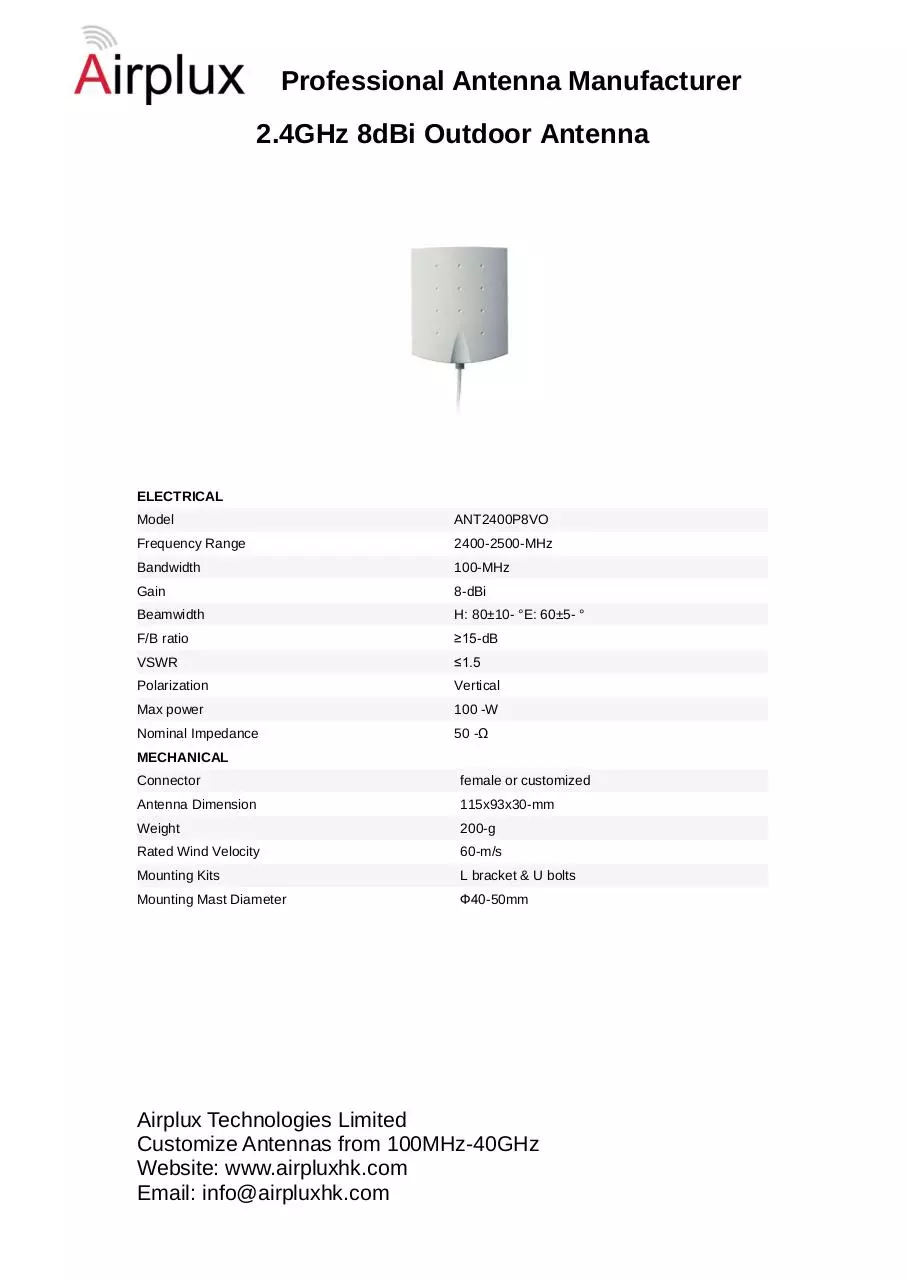

Page 1 of 1, 2.4GHz 8dBi Outdoor Antenna

File preview

Professional Antenna Manufacturer 2.4GHz 8dBi Outdoor Antenna ELECTRICAL Model ANT2400P8VO Frequency Range 2400-2500-MHz Bandwidth 100-MHz Gain 8-dBi Beamwidth H: 80±10- °E: 60±5- ° F/B ratio ≥15-dB VSWR ≤1.5 Polarization Vertical Max power 100 -W Nominal Impedance 50 -Ω MECHANICAL Connector female or customized Antenna Dimension 115x93x30-mm Weight 200-g Rated Wind Velocity 60-m/s Mounting Kits L bracket & U bolts Mounting Mast Diameter Ф40-50mm Airplux Technologies Limited Customize Antennas from 100MHz-40GHz Website: www.airpluxhk.com Email: info@airpluxhk.com
