   Starburst  Mounting  Systems  -­‐  TV  Wall  Mounts
MODEL #

PRODUCT PHOTO

SB-3275WM

SB-3275WMT

SB-1755ART

SPECIFICATIONS
Fixed Wall Mount
Suggested Screen Sizes 32" to 75" (81.3 to 190.5cm)
Product Size
700x215x28mm (27.6x8.5x1.1")
Max VESA
600x400mm (23.6x17.7")
Distance To Wall
30mm (1.2")
Tilt Range
n/a
Max Loading
50kgs (110lbs)
Fixed w/Tilt Wall Mount
Suggested Screen Sizes 32" to 75" (81.3 to 190.5cm)
Product Size
680x173x48mm (26.8x6.8x1.9")
Max VESA
600x400mm (23.6x17.7")
Distance To Wall
48mm (1.9")
Tilt Range
-15 to 0 Degrees
Max Loading
50kgs (110lbs)
Articulated w/Exetending Arm
Suggested Screen Sizes 17" to 55" (43.2 to 140cm)
Product Size
430x430x508mm (16.9x16.9x22.8")
Max VESA
400x400mm (17.7x17.7")
Distance To Wall
45 to 508mm (1.8 to 20.0")
Tilt Range
-15 to +10 degrees
Max Loading
35kgs (77lbs)

PACKING INFORMATION

PRODUCT FEATURES

4-Color Box Size
QTY Per Carton
Carton Size
Carton Gross Weight

710x225x30mm (28x8.9x1.2")
10pcs
73x33x24cm (28.7x13x9.4")
19kgs (42lbs)

Material (Steel) SPCC with powder coated finish
Color
Black
Level
Built-in Bubble Level

4-Color Box Size
QTY Per Carton
Carton Size
Carton Gross Weight

695x180x45mm (275x7.1x1.8")
Material (Steel) SPCC with powder coated finish
10pcs
Color
Black
71.5x24.5x38cm (28.2x96.5x15") Level
Built-in Bubble Level
23.5kgs (52lbs)

4-Color Box Size
QTY Per Carton
Carton Size
Carton Gross Weight

350x265x55mm (13.8x10.4x2.2")
5pcs
37x29.5x28cm (14.6x11.6x11")
20kgs (44lbs)

Material (Steel) SPCC with powder coated finish
Color
Black
Cable
Available via plastic cover
Management

Starburst  Technologies    •    6353  West  Rogers  Circle,  #6    •    Boca  Raton,  FL    33496    •    800.242.1606    •    f:  561.998.0608    •    pdiconnected.com    •    e:  sales@pdiconnected.com
©  2015  PDi  Communications,  Inc.    All  rights  reserved.      11112015
                                                                           A  division  of  PDi  Communications,  Inc.

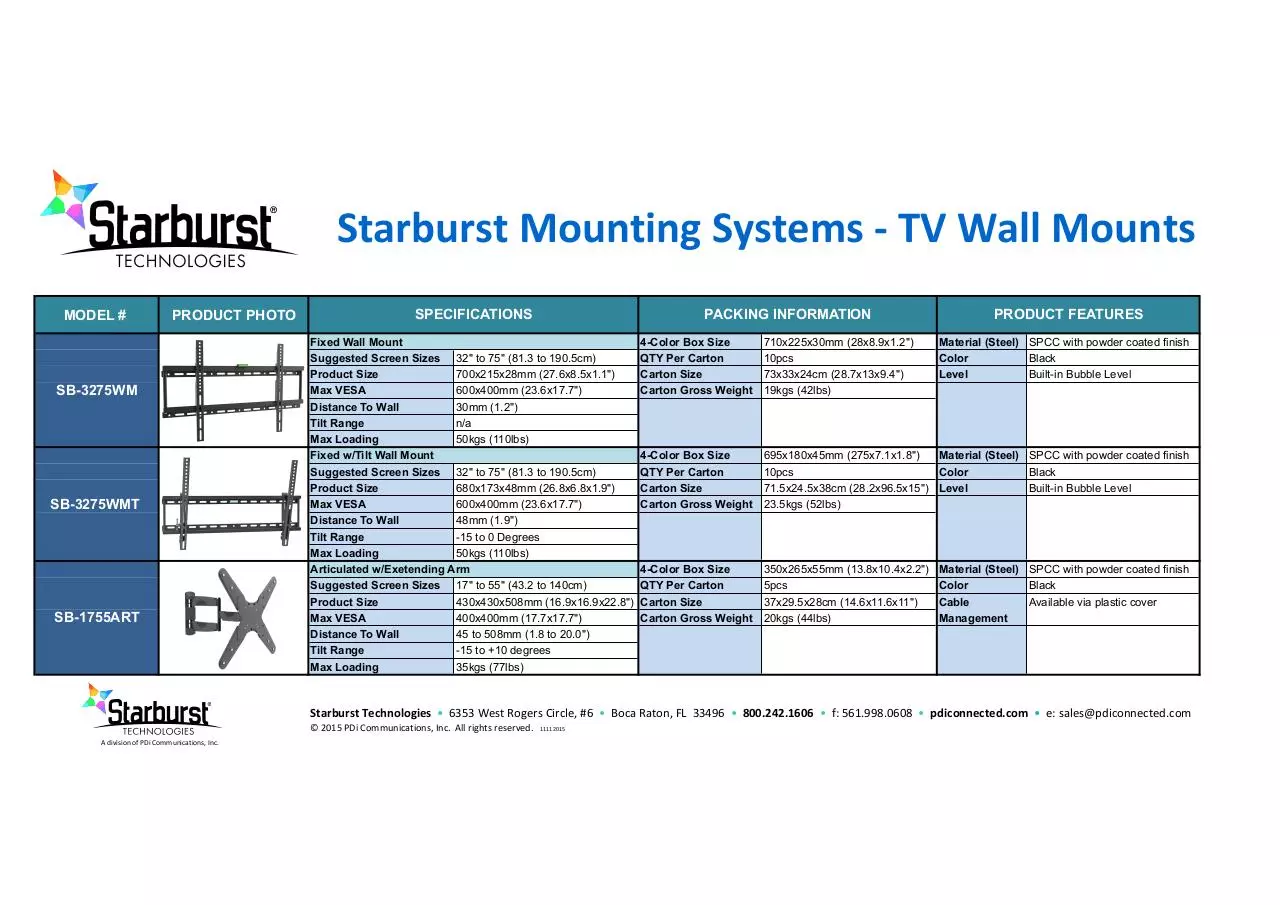

Document preview Starburst Mounts combo spec sheet3.pdf - page 1/1
