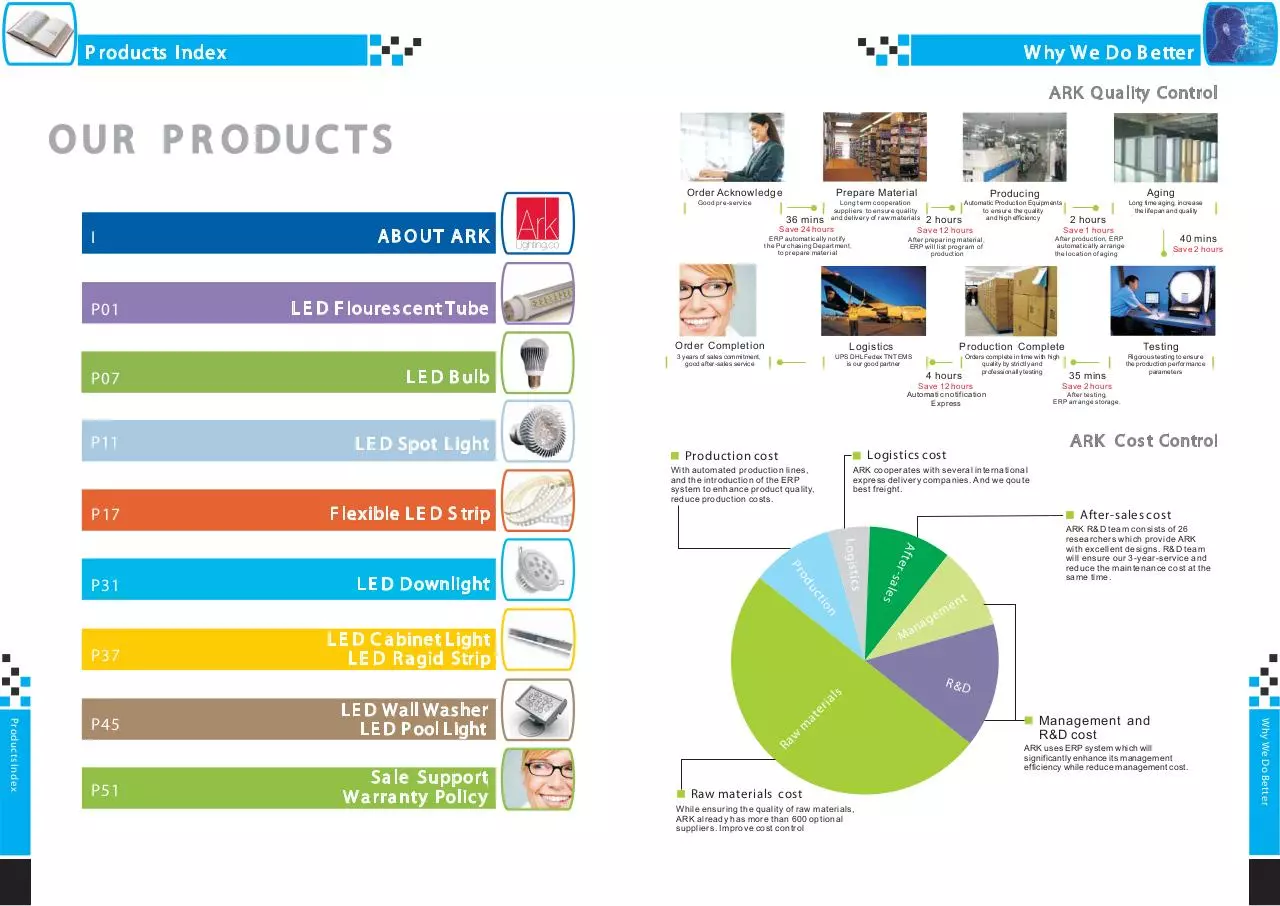

ARK LED CATALOGUE 2011

www.arklighting.co DELIVERING LIGHTING SOLUTIONS Delivering Lighting Solutions www.arklighting.co Ark Lighting McGann House Chesham Rd Barnsley S o u t h Yo r k s h i r e S70 2NT t: 01226 320737 f: 01226 292997 e: sales@arklighting.co w: arklighting.co  About ARK Ark Lighting has an innovative range of HID and LED lighting solutions that cover external and internal areas. Ark is committed to offering leading edge high efficiency energy saving lighting solutions which are designed to meet practical requirements of illumination levels and are manufactured with trusted engineering principles. With a vast experience in HID and LED lighting Ark is small enough to care, yet large enough to cope. Our customer relationships are key to us, they are as important to us as our products and as such we pride ourselves in high levels of customer service, keeping you informed throughout the process of design, manufacture and delivery. We pride ourselves on our customer service which holds true to our family values, with two generations involved in our business it is hard not to! We hope that this wealth of engineering and business experience of over 50 years is reflected in the quality of our products and in your experience. We use the latest in manufacturing and design processes together with innovative ideas to ensure that every product that we supply is finished to the highest standard of quality and complies with all relevant EU standards. Experts Point LED allow us to create unique, low energy lighting solutions, not to mention their lower maintenance costs and as investment continues and volumes increase, the price of LEDs should come down by 10% or more a year. For some time now LED lighting systems have been used to light up buildings, bridges and monuments. Due to their flexibility and the possibility to set any desired colour, LEDs offer lighting solutions, which are not possible with any other existing technologies, such as colour wall washing, sharp light/shadow lines and avoiding light pollution on windows. Rapidly expanding R & D team of ARK will bring the world more LED lighting solutions. Welcome to Ark Lighting Ark Lighting is a leading UK developer of HID and LED Luminaires working with technical partners from around the globe to offer the latest available technology. Our focus is to provide our clients with innovative engineered products manufactured to last in the modern environment encompassed in a stylish shell with energy efficiency and low carbon emissions always a top priority. Lighting for all applications Our range features functional lighting and decorative contemporary and traditional luminaires, Floodlighting, Industrial lighting, Bollards, lighting columns, feeder pillars and LED Signage, LED lamps, Architectural LED products to create your desired effect. Within our site we hope to inform and inspire in an easy to use format which is a joy to navigate.  P roduc ts Inde x W hy W e D o B e tte r ARK Q ua lity Control OUR P R ODUC T S Order Acknowledge Prepare Material Good pre-service I P01 Long term cooperation suppliers to ensure quality and delivery of raw materials 36 m i n s Save 24 hours A B O U T AR K Save 1 hours L E D B ulb L E D Spot L ight Logistics 3 years of sales commitment, good after-sales service Production Complete UPS DHL Fedex TNT EMS is our good partner 4 hours Orders complete in time with high quality by strictly and professionally testing Save 12 hours Af n ls e t R&D ia er at m w Ra Sa le Support W a rra nty Polic y ag n me Raw materials cost While ensuring the quality of raw materials, ARK already has more than 600 optional suppliers. Improve cost control Management and R&D cost ARK uses ERP system which will significantly enhance its management efficiency while reduce management cost. Why We Do Better Products Index P51 ARK R&D team consists of 26 researchers which provide ARK with excellent designs. R&D team will ensure our 3-year-service and reduce the maintenance cost at the same time. les tio n Ma L E D C a bine t L ight L E D R a gid Strip L E D Wall Was her L E D P ool L ight After testing, ERP arrange storage. ARK C os t Control ter -sa L o g is t ic s L E D D ownlight 35 mins After-sales cost uc P31 Testing Rigorous testing to ensure the production performance parameters ARK cooperates with several international express delivery companies. And we qoute best freight. With automated production lines, and the introduction of the ERP system to enhance product quality, reduce production costs. od F le xible L E D S trip P45 Save 2 hours Save 2 hours Logistics cost Production cost Pr P17 P37 40 mins After production, ERP automatically arrange the location of aging After preparing material, ERP will list program of production Automatic notification Express P11 2 hours Long time aging, increase the lifepan and quality L E D F loure s c e nt Tube Order Completion P07 2 hours Save 12 hours ERP automatically notify the Purchasing Department, to prepare material Aging Producing Automatic Production Equipments to ensure the quality and high efficiency  LED Flourescent Tube T8 Solution LED Flourescent Series Very Energy Efficient Up to 70% more energy efficient than T8 & T12 flourescents Features Color in KeLvin: 2700K - 7500K Size: T8 Length: 1“-8” in length CHAPTER 1 LED Flourescent Tube 50,000 hours or 5.7 when on 24/7 Up to 16 years in an office enviroment Universal Input Current 85-268V Recyclable No toxic mercury No fluorescent disposal danger or costs Simple installation It only takes 3 to 5 miniutes per fixture Input Voltage Model Color/ CCT SHELL TYPE Dimension TP XT8-120C-W White 4271K Clear Shell 1200mm 3528 SMD 288 1729lm AC85 265V 17 65W TP XT8-120C-WW Warm White 2932K Clear Shell 1200mm 3528 SMD 288 1659lm AC85 265V 17 65W TP XT8-120W-W White 4271K Wave Shell 1200mm 3528 SMD 288 1711lm AC85 265V 17 65W TP XT8-120W-WW Warm White 2932K Wave Shell 1200mm 3528 SMD 288 1623lm AC85 265V 17 65W TP XT8-120F-W White 4271K Frosted Shell 1200mm 3528 SMD 288 1418lm AC85 265V 17 65W TP XT8-120F-WW Warm White 2932K Frosted Shell 1200mm 3528 SMD 288 1346lm AC85 265V 17 65W Led Type Led Qty Luminous Flux Rated Power LED Flourescent Tube LED Flourescent Tube 01 Extremely Long Life - 5 Year Guarantee Safer than Fluorescent Solid state - no glass No vacuum or pressurized vessel Impact and shock resistant Cool to the touch 02  T8 T8 TP-XT8-S120 Descriptions Model Number Color/CCT 1200mm Dimension LED Type LED Q'ty Luminous Flux Input Voltage Rated Power Luminous Flux Input Voltage Rated Power 900mm TP-XT8-120 TP-XT8-90 1500mm 600mm TP-XT8-150 TP-XT8-60 TP-XT8-150 Descriptions Model Number Color/CCT TP-XT8-60 Model Number SHELL Type SHELL Type Dimension LED Type LED Q'ty Descriptions Color/CCT SHELL Type Dimension LED Type LED Q'ty Luminous Flux Input Voltage Rated Power Why Choose ARK T8 Color/CCT SHELL Type Dimension LED Type LED Q'ty Luminous Flux Input Voltage Before Rated Power After zone visual dark zone luminous efficacy There is no visual dark zone on the lighting surface with the light transmission is 86% and the PC dispersant cover. Besides, the LED chips are not on the sight while the tube is still on 120 uniform luminous excellent performance. intensity zone heat dissipation Additional effective heat dissipation area 73 4508 43 2649 43 2649 69 76 The additional effective heat dissipation area increases 69% and the speed of heat dissipation increases 50% at the same time. In this way, the LED in the lowest consumption and reach the longest life span. LED Flourescent Tube LED Flourescent Tube 03 Descriptions 120 uniform luminous intensity zone 30 dim section TP-XT8-90 Model Number The LED chips are visible and there is a visual dark zone on the lighting surface. Only the transparent lampshade and wave lampshade can be used. 04  T8 T8 TP XT8-120C-W 1M 2M 3M 612Lux 173Lux 92Lux TP XT8-120C-WW TP XT8-120W-W TP XT8-120W-WW 543Lux 152Lux 81Lux 572Lux 171Lux 79Lux TP XT8-120F-W 541Lux 143Lux 75Lux TP XT8-120F-WW 421Lux 131Lux 63Lux 418Lux 125Lux 63Lux RETROFIT INSTALLATION INSTRUCTIONS Step by Step Instructions ARK LED T8 Lamps replace Fluorescent T8 T12 lamps of the same length ARK LED T8 lamps may be installed in fixtures holding T8 Fluorescent lamps by simply rewiring the fixture to bypass the Ballast Green Ray LED lamps work in fixtures with voltages ranging from 100 277 V ARK T8 4100K LED Lamp Total Power Watts 49 32 32 16 16 16 27 18 26 17 65 Output Initial Lumens 1579 1407 1357 1062 1108 1218 1198 1136 1258 1729 Efficacy lm W 32 44 42 66 69 76 45 64 55 98 CRI 75 76 76 72 66 66 64 63 70 4271 remove linear fluorescent lamp Remove ballast or leave in place Insert ARK LED T8 lamps in fixture with the power input end inserted into the powered lampholder BALLAST LAMPHOLDERS LAMPHOLDERS for live demonstration by pass or remove the ballast 63 Disposing of Fluorescent Lamps http www epa gov region02 mercury mercurylamps html the installer must WARNING Risk of fire or electric shock Refector kit installation requires knowledge of fuorescent lighting luminaires electrical systems If not qualifed do not attempt installation Contact a qualifed electrician replace with ARK LED lamp do not expose wiring to edges of sheet metal or other sharp objects POWER INPUT END The end retroft luminaire has been modifed and can no longer operate the originally intended lamp Risk of fire or shock Do not use this retroft kit in luminaires employing shunted bi pin lampholders Note Shunted lamp holders are found only in fuorescent luminaires with Instant Start ballasts Instant start ballasts can marked on the ballast This designation may be in the form of a statement be identifed by the words Instant Start or I S pertaining to the ballast itself or may be combined with the marking for the lamps with which the ballast is intended to be used for example F40T12 IS THE RETROFIT ASSEMBLY IS ACCEPTED AS A COMPONENT AS A FLUORESCENT LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION SHALL BE DETERMINED BY CSA OR AUTHORITIES HAVING JURISDICTION • The retroft kit is suitable to be installed in an IC recessed ceiling mounted luminaire enclosed with a diffuser having a maximum of 4 LED tube lights • The retroft kit is not suitable to be used with emergency exit luminaires • For more information contact the LED luminaire retroft kit manufacturer reuse the existing fixture LED Flourescent Tube LED Flourescent Tube 05 WARNING WARNING Fluorescent lamps contain mercury which is released as poisonous vapors if the lamps are broken Mercury can also be absorbed through the skin by handling broken fluorescent lamps For these reasons care must be taken to dispose of fluorescent lamps safely Here are a couple helpful links Clean up of broken Fluorescent Lamps http www epa gov mercury spills index htm THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED To prevent wiring damage or abrasion Strip plastic from ends of wire connected to lampholders Using the two wires from only one lampholder connect one to neutral and one to hot WARNING This lampholder must be non shunted Lamp Replacement Compliance Label WARNING Remove ballast cover Cut all lampholder leads from ballast leaving them as long as possible CCT K 3667 3758 3756 4657 3182 3221 3394 2993 3579 WARNING Risk of fire or electric shock The electrical rating of these products are 100 277 Vac determine whether they have 85 268 V at the luminare before installation Carefully remove existing Fluorescent lamps Disconnect power line from ballast fixture ARK T8 4100K LED in comparison with CALiPER T8 LED test samples CALiPER Test ID 08 121 09 13AB 09 13CD 09 17 09 39 09 40 09 46 09 48 avg Turn off power to fixture 06  L E D B ulb QB 60mm 114mm 84mm E27 E27 B22 Gu10 Attention: The base of this product can according to customer’s order TP-QB LED (CRI>90) BULB GIVES YOU NEW FEELING OF READING CHAPTER 2 LED BULB 0.5M 337 1.0M 86 2.0M 21 0.5M 326 1.0M 81 2.0M 20 Bulb Driver Feature Replace a incandescent lamp and drop from 35W to 6W Model 07 Color LED Type CCT Rated Power Consumption CRI Luminous Flux Working Voltage Beam Angle LED Bulb LED Bulb High-CRI Protect your eyes, reduce your fatigue when reading Patent design, TP-QB is so far the hightest CRI avialable in the market Weight 08  QBQ QBX unite: mm 56 56 AC 3528 Driver Incl 100-266V 71.1 lm/w Edison AC 100-266V Driver Incl 6.5W B22 Gu10 Descriptions Model Number 60mm 5.0W Gu5.3 Color LED Type Light Output (lumen/m) Base Voltage (V ) CCT CRI Max Power Consumptio n(W/m) White Warm White 114mm 84mm TP-QBX-W Feature Cree AC Driver Incl 100-266V 3W E14 Replace a incandescent lamp and drop from 15W to 3W Cree made my life more durable 50 000 hours and up to Candle lights designed, your life is full of romance unite: mm 95 0 E27 E27 TP-QBX-WW Feature TP-QBC-W Model 09 71lm/w, 4050 SMD LED, 20PCS Color LED Type CCT Rated Power Consumption CRI Luminous Flux Working Voltage Beam Angle Weight Model Color LED Type CCT Rated Power Consumption Cree 3w 3 0W Cree 3w 3 0W CRI Luminous Flux LED Bulb LED Bulb Replace a incandescent lamp and drop from 45W to 6.5W TP-QBC-W Working Voltage Beam Angle Weight 10  LED Spot Light PAR30 Solution LED Spot Light Series CHAPTER 3 TP-PAR30-5W TP-PAR30-7W LED Spot Light Color White LED Type Light Output (Lux from a meter) CRI Light Output (lumen) Beam Angle (dagrees) Voltage(V) LED Spot Light LED Spot Light Descriptions Model Number Warm White White Warm White 11 12  PAR30 Spot Light TP-PAR30-9W TP-PAR30-12W Feature 12 volt MR16 lamps with GU5.3 bi-pin standard base 25 LENS A 90 LENS B 110 volt MR 16 lamps with GU10 turn and lock base Ideal for replacing Halogen MR16 and GU10′s in track and open fixtures in retail and office environments. Application All kinds of exhibitoin halls,store lighting,car showroon,brand authorized store,department store,supermarket,museum,hall of office building and all places requiring exhibition lighting 45 65 Feature Replace a PAR30 and drop from 75W to 8W Energy Busters – Replace flood or spot lights and save up to 90% of your energy Available in 5W PAR 16, 6W PAR 20, 8W PAR 30 and 15W PAR 38 Descriptions Light Color Correlated Color Temperature CCT in Kelvin K Model Number Color LED Type Light Output (Lux from a meter) CRI Light Output (lumen) Beam Angle (dagrees) Voltage (V) White Warm White Warm White Warm White 2700K 3000K Pure White 4000K White Cool White 6500K Warm White 9000K White Model Number Color White Warm White White LED Type Light Output (Lux from a meter) CRI Light Output (lumen) Beam Angle (dagrees) Voltage(V) White Warm White White Warm White LED Spot Light LED Spot Light Warm White Descriptions White Warm White Warm White 13 14  Spot Light Spot Light 25 LENS A 90 LENS B 45 55 25 LENS A 90 LENS B Descriptions Model Number Color LED Type Light Output (Lux from a meter) CRI Light Output (lumen) Beam Angle (dagrees) white warm white Voltage (V) Descriptions White Model Number Warm White Color White warm white Warm White LED Type Light Output (Lux from a meter) CRI Light Output (lumen) Beam Angle (dagrees) Voltage (V) White White Warm White Warm White White White Warm White White Warm White Warm White White 38 Warm White white Features Low power consumption, Environment protection, low voltage, Safe and easy for installation. Long life span. Dimensions: 34.5*38 mm Average life time: 50, 000 hours Material: Glass, PC, high quality alloy material for radiation function Descriptions Model Number Color LED Type Light Output (Lux from a meter) CRI Light Output (lumen) Beam Angle (dagrees) Voltage (V) White Warm White Application All kinds of exhibitoin halls,store lighting,car showroon,brand authorized store,department store,supermarket,museum,hall of office building and all places requiring exhibition lighting White Warm White White White Warm White Descriptions Model Number Color White Warm White White LED Type Light Output (Lux from a meter) CRI Light Output (lumen) Beam Angle (dagrees) Voltage (V) LED Spot Light LED Spot Light Warm White White Warm White Warm White 15 16  L E D F le xible S trip SBS SBS series make me surprised. Five meters SBS flexible strip with 5212LM (max) brightness which makes my ideas come into reality.( New World Hotel Beijing) Nancy Lighting Designer CHAPTER 4 Connectors for cut Flexible LED Strip 172 142 103 86 500mm 20 Luminance warm white 3200K Model Number Color TP SBS W White Length LED Light Output Light Output Beam Angle Voltage Current Max Power Continuous LED Type Consumption Connection m Q ty degrees V C Amps mcd lumen W m 5 600 5 600 Power 3500 X 600 SMD Top LED 3000 X 600 5212 120 12 7.5 90 5 3967 120 12 7.5 90 5 LED Flexible Strip LED Flexible Strip 307 500mm 20 Luminance white 6500K TP SBS WW Warm White 17 338 18  BS BS Assembly Information Application The base of the strip is distributed with several strips which with lots of two-side adhesive on the back surface. A clean and dry installation place is required. Make sure the surface of installation place is smooth. Remove the adhesive backing completely. When the strip is assembled 2 appropriately, press the strip with 20N/cm The minimum of bending radius is 2cm. The strip can be bent to a smaller radius of circuit board without electronic components which can avoid damage. Great advantages Soldering can only be operated on the corresponding soldering pads (marked “+/-). Make sure the soldering time does not surpass 10 seconds and the temperature does not exceed 260 degrees during soldering. Linking operation A unit is consisting of 3 leds and each unit can be cut (cut in the position remarked with a scissor). Connectors Packing information Safety Information The strip and its components can not be mechanically pressed. Correct electrical polarity needs to be observed. Ensure the power is adapt to operate the total load. Parallel connection is highly required as safe electrical operation mode. Pay attention to ESD precautions during assembling. Assembly of LED modules includes power supplier must be appropriately. When installing on metallic or other surface, an electrical isolation point between strip and the installing surface is recomm ended. Only qualified person allowed to operate installations. LED Flexible Strip LED Flexible Strip Installation must not damage the conducting paths on the circuit board. Damaged by corrosion will not be materials defect claim. It is the user's responsibility to provide a suitable protection again st moisture, condensation and other harmful elements. 19 20  HB S XBS Dimension drawing Unit mm Packing information Application Dimension drawing The applications of XBS XBS contains 2 lines of high brightness SMD LEDs on a 16mm wide FPC board like other TOPO flexible strips. The XBS is 5m a reel and it stands out for its remarkable light output. Each meter of XBS is CCT 6000K which gives more than 1000 lumens while the whole strip gets no heat at the same time. White color CCT3000K, 4000-4500K and 6000K and other colors are also offered to customers. It will be considered as a excellent light source for signage, contour and canopy for decorative purpose without hesitation. XBS can be easily used by end users who are not professors. Costumers can cut the strip along the marks on PCB and do the join work again with our connector. In this way no length of XBS will be wasted. Costumers can install XBS around any corners with our L and T shape connector. Unit mm General Information The base of the strip is distributed with several strips which with lots of two-side adhesive on the back surface. A clean and dry installation place is required. Make sure the surface of installation place is smooth. Remove the adhesive backing completely. When the strip is asse mbled appropriately, press the strip with 20N/cm2 Soldering can only be operated on the corresponding soldering pads (marked “+/-). Make sure the soldering time does not surpass 10 seconds and the temperature does not exceed 260 degrees during soldering. The minimum of bending radius is 2cm. The strip can be bent to a smaller radius of circuit board without electronic components which can avoid damage. A unit is consisting of 6 leds and each unit can be cut (cut in the position remarked with a scissor). 16mm width of Ribbon. LED distance 8.3mm and cut section length 50mm. XBS Accessories Packing material is hot-sealing film bag 3m adhesive tape on ribbon backside. 5m as the standard packing length Correct electrical polarity needs to be observed. The strip and its components can not be mechanically pressed. Installation must not damage the conducting paths on the circuit board. Ensure the power is adapt to operate the total load. Assembly of LED ribbon includes power supplier must be appropriately. Only qualified person allowed to operate installations. Pay attention to ESD precautions during assembling. LED Flexible Strip LED Flexible Strip Safety instruction Serial connection is not recommended. Unbalanced voltage change will cause overload and damage of the strip. When installing on metallic or other surface, an electrical isolation point between strip and the installing surface is recomme nded. Damaged by corrosion will not be materials defect claim. It is the user's responsibility to provide a suitable protection again st moisture, condensation and other harmful elements. 21 22  WB S WB S 2 Features Great advantages Application Packing information Application Features Dimension drawing Unit mm LED Flexible Strip LED Flexible Strip 23 24  XB S W DF XBS silicon sleeve typ e XBS contains 2 lines of high brightness SMD LEDs on a 16mm wide FPC board like other ARK flexible strips. The XBS is 5m a reel and it stands out for its remarkable light output. Each meter of XBS is CCT 6000K which gives more than 1000 lumens while the whole strip gets no heat at the same time. White color CCT3000K, 4000-4500K and 6000K and other colors are also offered to customers. It will be considered as a excellent light source for signage, contour and canopy for decorative purpose without hesitation. XBS can be easily used by end users who are not professors. Costumers can cut the strip along the marks on PCB and do the join work again with our connector. In this way no length of XBS will be wasted. Costumers can install XBS around any corners with our L and T shape connector. Applications Dimension drawing Dimension drawing Accessories Unit mm Features Unit mm Link options Application LED Flexible Strip LED Flexible Strip 25 26  W DB S W MB S Application Features LED Flexible Strip LED Flexible Strip 27 28  CS F le xible S trip C onne c tion Flex Strip Connector Operation Instruction TP-BS-C1 TP-SBS-CON3 TP-BS-C2 Step A 1 : Pull out the black clip carefully. Step A 2 : Cut the flexible led strip light at the mark “scissors” or by every 3 LED’s. Step A 3 : Put the flexible led strip light in the space between the clip and connector . Step A 4 : Push the clip in original position. TP-XBS-CON3 Application TP-BS-C3 Step B 1 : Pull out the black clip of each side carefully. Step B 2 : Pull the flexible led strip light in the space between the clip and connector at one side . Step B 3 : Put the flexible led strip light in the space between the clip and connector at the other side ,and push the clip in original position. Great advantages Dimension Circuit drawings TP-BS-C4 TP-BS-C5 TP-CS W Package TP-SBS-CON4 TP-SBS-CON4 TP-XBS-CON5 TP-BS-C6 Signle color Strip connect to DC portable power supplier RGB Strip connector attention TP-CS-W2 single color TP-BS-C4 Safety Information The strip and its components can not be mechanically pressed. Installation must not damage the conducting paths on the circuit board. Assembly of LED ribbon includes power supplier must be appropriately. Only qualified person allowed to operate installations. Correct electrical polarity needs to be observed. Accessories TP-BS-C6 For SMD5050 single color, 2 wire out: + and For SMD5050 RGB strip 4 wire out: + , R, G and B RGB color Parallel connection is highly required as safe electrical operation mode. Serial connection is not recommended. Unbalanced voltage change will cause overload and damage of the strip. When installing on metallic or other surface, an electrical isolation point between strip and the installing surface is recommended. Pay attention to ESD precautions during assembling. Damaged by corrosion will not be materials defect claim. It is the user's responsibility to provide a suitable protection against moisture, condensation and other harmful elements. LED Flexible Strip LED Flexible Strip 29 Ensure the power is adapt to operate the total load. 30  L E D D ownlight S D L 01 Solution LED Downlight Series SDL01 SDL01 unite: mm 60 SDL01-A CHAPTER 5 SDL01-B 40 35 LED Downlight LED Downlight LED Downlight 31 32  L E D D ownlight SDL02 S D L 01 BDL03 unite: mm SDL03 BDL06 unite: mm LED Downlight LED Downlight 33 34  B DL BDL09 C DL CDL01 unite: mm CDL02 50 LED Downlight LED Downlight unite: mm 22.00 35 36  L E D R igid S trip HR S Epistar 3528 LED HRS is so far the brightest rigid strip available in the market. TP-WHRS TP-HRS 0.5M 417 1.0M 204 2.0M 121 TP HRS-0560W Solution LED Ragid Strip Series 578mm 1.0M 174 2.0M 102 LED Ragid Strip. Cabinet Light Model Number TP WHRS-0560W Color Whi te TP-WHRS-5060WW War m White TP- WHRS-5060W2 Whi te TP- WHRS-5060WW2 TP-HRS-5060W LED Type High Flux Top SMD LED 5060 War m White Whi te TP-HRS-5060WW War m White TP- HRS-5060W2 Whi te War m White High Flux Top SMD LED 5060 Length (m) LED Q'ty / Light Output Light Output Beam Angle Voltage (V PC (mcd) (Lumen) (degrees) DC) Current (Amps) Max.Power Consumptio n 0.5 30 30x12000 885 120 12 0.6 12 0.5 30 30x10200 762.2 120 12 0.6 12 1 60 60x12000 1740 120 12 1.2 24 1 60 60x10200 1473.5 120 12 1.2 24 0.5 30 30x12000 1021 120 12 0.6 12 0.5 30 30x10200 846 120 12 0.6 12 1 60 60x12000 1948 120 12 1.2 24 1 60 60x10200 1671 120 12 1.2 24 LED Rigid Strip LED Rigid Strip TP-WHRS-5060W TP- HRS-5060WW2 37 354 1.6mm CHAPTER 6 29-18.7mm 0.5M 38  L E D R igid S trip RS Why we can make the most bright rigid strip Application: Architectural decorative lighting. Path & Contour Marking. Amusement park, theater & aircraft cabin mood lighting. Emergency hallway lighting. Auditorium walkway lighting. Stairway accent lighting. Concealed lighting, Backlighting for signage letters. Channel letter lighting. Cove lighting. Heat problem is the development bottleneck of highlights LED lamp , the following data illustrates how we help WHRS to solve the problem. Chip life test: Affect of Tj on Luminous Maintenance If 150mA Dot line Expected Life Features: Can be cut every 3 LEDs along the mark on PCB. Solid-state, high shock / vibration resistant. Low power consumption; no heat. Compact size to suit narrow space installation. Easily can be connected by cable connector. Maintenance free, easy installation. 100 80 29-18.7mm 60 480mm 578mm 8mm 29-16mm 40 0 10 100 1000 10000 100000 h 5060 Series Rigid Strip X-Connector S-Connector Curves of beam angle and relative brightness Model Number TP- RS- 3528W Color LED Type Length (mm) White TP- RS- 3528WW Warm White Top SMD LED 3528(1210) LED Q'ty / Light Output Light Output Beam Angle Voltage (V DC) PC (mcd) (Lumen) (degrees) Current (Amps) Max.Power Consumptio n 480 30 30x1200 120 120 12 0.2 2.4 480 30 30x850 100 120 12 0.2 2.4 480 30 30x600 92 120 12 0.2 2.4 480 30 30x600 108 120 12 0.2 2.4 Red TP -RS-3528Y Yell ow TP -RS-3528B Blue 480 30 30x250 63 120 12 0.2 2.4 TP-RS- 3528G Gr een 480 30 30x650 117 120 12 0.2 2.4 TP- RS- 5060W White 578 30 30x3500 403 120 12 0.6 7.2 578 30 30x3000 313 120 12 0.6 7.2 578 30 30x1500 302 120 12 0.6 7.2 578 30 30x1800 300 120 12 0.6 7.2 TP- RS- 5060WW Warm White TP- RS- 5060R Red Top SMD LED 5060 TP -RS-5060Y Yell ow TP -RS-5060B Blue 578 30 30x750 336 120 12 0.6 7.2 TP-RS- 5060G Gr een 578 30 30x1200 403 120 12 0.6 7.2 578 30 30x1500 133 120 12 0-0.6 0-7.2 LED Rigid Strip LED Rigid Strip TP- RS- 3528R TP-RS-5060RG B RGB 39 3528 Series Rigid Strip Two Type connector Patent designed: Button of 5060 LED chip with high scale heat sink This design can help the high flux 5060 normal running heat sink 1.6mm 20 1.6mm Relative Luminous Intensity 120 40  WR S WR S Installation diagram Model Number TP-WRS-5060W TP-WRS-5060W TP-WRS-5060WW TP-WRS-5060WW TP-WRS- 3528W TP-WRS-3528WW Length (m) LED Q'ty / Light Output Light Output Beam Angle Voltage (V PC (mcd) (Lumen) (degrees) DC) Current (Amps) Max.Power Consumptio n Whi te 0.5 30 30x1200 114 120 12 0.2 2.4 War m White 0.5 30 30x850 95 120 12 0.2 2.4 Red 0.5 30 30x600 87.4 120 12 0.2 2.4 TP- WRS- 3528Y Yel low 0.5 30 30x600 102.6 120 12 0.2 2.4 TP- WRS- 3528B Blue 0.5 30 30x250 59.8 120 12 0.2 2.4 TP-WRS-3528G Green 0.5 30 30x650 111.1 120 12 0.2 2.4 TP-WRS- 3528W2 Whi te 1 60 60x1200 228 120 12 0.4 4.8 Top SMD LED 3528(1210) War m White 1 60 60x850 190 120 12 0.4 4.8 TP- WRS- 3528R2 Red 1 60 60x600 174.8 120 12 0.4 4.8 TP- WRS-3528Y2 Yel low 1 60 60x600 205.2 120 12 0.4 4.8 Blue 1 60 60x250 119.7 120 12 0.4 4.8 Green 1 60 60x650 222.3 120 12 0.4 4.8 TP-WRS-5 060W White 0.5 30 30x3500 382.8 120 12 0.6 7.2 Warm White 0.5 30 30x3000 297.3 120 12 0.6 7.2 TP-WRS-5 060R Red 0.5 30 30x1500 286.9 120 12 0.6 7.2 TP-WRS-5 060Y Yellow 0.5 30 30x1800 285 120 12 0.6 7.2 TP-WRS-5 060B Bl ue 0.5 30 30x750 319.2 120 12 0.6 7.2 TP-WRS-5 060G Green 0.5 30 30x1200 382.8 120 12 0.6 7.2 1 30 3 0 x1 5 0 0 1 2 6 .3 120 12 0 -0 .6 0-7 .2 1 60 60x3500 756.3 120 12 1.2 14.4 LED Rigid Strip TP-WR S-5 0 6 0 R GB R GB TP-WRS-5 060W2 White Top SMD LED 5060 Warm White 1 60 60x3000 588.6 120 12 1.2 14.4 TP-WR S-5 060 R2 Red 1 60 60x1500 566.2 120 12 1.2 14.4 TP-WRS-5 060 Y2 Yello w 1 60 60x1800 564.3 120 12 1.2 14.4 TP-WR S-5 060B2 Bl u e 1 60 60 x75 0 631.6 120 12 1.2 14.4 TP-WRS-5 060WW2 TP-WRS-5 060 G2 TP-WRS-5 0 6 0 R GB2 Gre en 1 60 60x1200 756.3 120 12 1.2 14.4 R GB 1 60 6 0 x1 5 0 0 24 9.4 120 12 0 -1 .2 0-1 4 .4 LED Rigid Strip TP- WRS-3528B2 TP-WRS-3528G2 TP-WRS-5 060WW 41 LED Type TP-WRS- 3528R TP-WRS- 3528WW2 unite: mm Color 42  Using quality aluminum heatsink for excellent heat dissipation. Innovative lighting with ultra slim and lightweight profile. No UV/IR,low heat and long lifetime. L E D C a bine t L ight 50mm TP-CID-SL03 10mm Extremely thin LED light gives out high and even light with low heat. It is ideal for furniture decorative lighting, display and show case. 10mm TP-CID-DLIR LED 9PCS Wattage 2.8W 8.8mm 9PCS 1.8W 50mm 165mm LIGHT COLOUR TP-CID-DL02 9PCS 1.8W 60mm 60mm WATTAGE MATERIAL LED QUANTITY Light Output LED WIGHT DIMENSION LED lumen Warm(3 200k/ 420 0k) cool(56 00k/6 0 00 k) wh ite , blue, yel low, red, g reen 1.8W Glass,Alu minum 9pcs 138.00 85g Dia 60mm*7 m m Warm(3 200k/ 420 0k) cool(56 00k/6 0 00 k) wh ite , blue, yel low, red, g reen 1.8W Acrylic ,Aluminum 9pcs 132.00 85g 6 0*6 0*7mm 1.8W Acrylic ,Aluminum 9pcs 141.00 1 65mm*5 0m m*8 .8mm 2.8W (with IRSensor) Acrylic ,Aluminum 9pcs 141.00 1 65mm*5 0m m*8 .8mm 18PCS 256.00 125g 300*18 *7mm 30PCS 429.00 190g 500*18 *7mm 12W 60PCS 839.00 380g 10 00*18*7mm 3.6W 18pcs 251.00 3 48mm*1 4m m*18mm 24pcs 343.00 4 48mm*1 4m m*18mm 30pcs 413.00 5 48mm*1 4m m*18mm 57pcs 823.00 1000 mm*14m m*18mm Warm(3 200k/ 420 0k) cool(56 00k/6 0 00 k) wh ite , blue, yel low, red, g reen Warm(3 200k/ 420 0k) cool(56 00k/6 0 00 k) wh ite , blue, yel low, red, g reen 17mm LED 9PCS Wattage 2.8W PICTURE Warm(3 200k/ 420 0k) cool(56 00k/6 0 00 k) wh ite , blue, yel low, red, g reen 325mm IR Sensor Switch Model Number 3.6W 6W 4.8W 6W PC,Alumin um Acrylic ,Aluminum 12W 3.6W PVC 18pcs 257.00 100g 3 25mm*1 0m m Warm(3 200k/ 420 0k) cool(56 00k/6 0 00 k) wh ite , blue, yel low, red, g reen 2.4W Acrylic ,Aluminum 12pcs 65.00 120g 2 95mm*2 3m m*7mm 6.4W 27pcs 359.00 4 55mm*5 0m m*8 .8mm 8.2W 36pcs 486.00 6 55mm*5 0m m*8 .8mm 45pcs 643.00 7 55mm*5 0m m*8 .8mm 45pcs 621.00 8 55mm*5 0m m*8 .8mm 11.8W 54pcs 734.00 9 55mm*5 0m m*8 .8mm 13.6W 63pcs 850.00 1155 mm*50m m*8 .8mm 3.6W 18pcs 240.00 5 80mm*3 5m m*120 mm 30pcs 408.00 8 80mm*3 5m m*120 mm TP-CID-SILR02 Length LED Wattage IR Sensor Switch 500mm 30PCS 6W Warm(3 200k/ 420 0k) cool(56 00k/6 0 00 k) wh ite , blue, yel low, red, g reen 500mm The unique triangular design. Innovative lighting with ultra slim and lightweight profile. No UV/IR, low heat and long lifetime. 580mm/380mm 120mm 35mm TP-CID-WLPIR Length 580mm LED 18PCS Wattage 3.6W 880mm 30PCS 6W Warm(3 200k/ 420 0k) cool(56 00k/6 0 00 k) wh ite , blue, yel low, red, g reen 10W 10W Acrylic ,Aluminum Acrylic ,Aluminum 6W LED Cabinet Light Warm(3 200k/ 420 0k) cool(56 00k/6 0 00 k) wh ite , blue, yel low, red, g reen ARK Keep Your Cabinet Out Of Dull 8.8mm move TP-CID-SLIRO1 27PCS 27PCS LED Wattage 5.4W 6.4W IR Sensor Switch LED Lighting For Cabinet FurnitureDisplay 500mm IR Sensor Switch 44  L E D W a ll W a s he r WS LS 48 .5 m m Linear LED Wall Washer Demos To give an idea how the effect of the linear wall washer will be we have placed some pictures below that we have taken during testing the linear LED wall washer: 2 50 0 8.0 mm 1 6 04 mm mm The linear high power LED wall washers are high power LED lights that are used for decorative lighting and highlight, or wash walls, of buildings, clubs, hotels, stages, parks, plazas, commercial building facades, art galleries, etc., with different kind of colors. The linear LED wall washer can even change their colors while projecting. The RGB linear LED wall washers can project 16.7 million colors and change the color by programming the LED wall washer the way you want to. Feature CHAPTER 7 LED Wall Washer. Pool Light Material: Waterproof aluminum alloy, 3mm euphoric toughened glass; Color: Single color and RGB full color; Voltage: DC24V; Constant Current: R/G/B 320mA, max current: 2A; Projection distance: 12-45 meters; Viewing Angle: 8-120 degrees; IP Rank: Ip65; Control Method: DMX512 controller optional; Life Span: > 100,000 hours Application Lighting for Clubs; Commercial Building Bacades Lighting for Parks; Lighting; Lighting for Plazas; Art Gallery Lighting, Model Number Color Light Source Power Luminous Voltage Protection Size (LxWxH) L E D W a ll W a s he r L E D W a ll W a s he r 45 Lighting for Stages; Lighting for Stages; 46  WS L W S B -W S R One-Row High Power LED Wall Washer Lights The one-row high power LED wall washers are high power LED lights that are used for decorative lighting and highlight, or wash walls, of buildings, clubs, hotels, stages, parks, plazas, commercial building facades, art galleries, etc., with different kind of colors. The one-row LED wall washer can even change their colors while projecting. The RGB one-row LED wall washers can project 16.7 million colors and change the color by programming the LED wall washer the way you want to. Features Installing Instruction Model Number Color Available in black and white for the light body; Lighting source: 1 Watt high power LED; Color Range: Different brightness of red, green and blue LED combined to produce 16777216 colors (flash changing, fade changing, chasing changing) or 10 functions(including seven static single color) for your choice freely; Material: Waterproof aluminum alloy, 3mm euphoric toughened glass; Operating Voltage: AC 90-264V/AC 170-250V; Beam Angle: 10-120 degrees; Projection distance: 12-90 meters; Control way: Control inner DMX 512; Controlling System: DMX controller, DMX console and Connecting control mode; Connector: 3-pin waterproof signal connector; Connecting mode: Standard signal cord and power cord; IP Rank: Ip65; Life Span: > 100,000 hours. Light Source Power Luminous Voltage Project Distance(m) Feature 456 mm Lighting source: 36pcs 1 Watt high power LED; Material: Waterproof aluminum alloy, alnico shell, 3mm euphoric toughened glass; Source: 1W high power LED; Color: Single color and RGB full color; Working Voltage: 100-240V AC; Max Current: 220V, 0.21A; mm Constant Current: R/G/B 320mA; 254 Projection distance: 12-55 meters; Viewing Angle: 8-120 degree; Control way: Control inner, DMX 512 control; IP Rank: Ip65; Life Span: > 100,000 hours. Application Landscape Lighting; Stage Lighting; Architectural decorative lighting; Green landscape lighting. Project Distance(m) Size (LxWxH) Feature TP-WSRS-RGB Power Consumption 36 Watt LED Chip 3W Three in one RGB Lumen Beam Angle 0-600lm 25 Number of LEDs 12 LEDs Current LEDs 350mA Protection Rating IP67 Cover Material Fiber Housing Aluminum Operating Temperature 47 40 C L E D W a ll W a s he r L E D W a ll W a s he r Model Name Round Color-Changing LED Wall Wash. It’s a multi-color LED spotlight that’s so light nearly anyone can lift and move it. Fabulous color-changing lights can come in small packages. Need proof? Each Round RGB Wall Washer weighs just over 6 pounds and is less than 8 inches tall. This LED wall light will make any party or event a colorful and dynamic affair. Use it to decorate indoor and outdoor settings. It’s a brilliant, theatrical tool for lighting clubs, theaters, stages, and auditoriums, and for highlighting buildings, gardens, restaurants and more. Forget bulky spotlight contraptions. Whether it’s an innovative, spectacular architectural accent lighting you crave or a simple, subtle approach to background wall color, this full color spotlight is spectacular. 80 C 48  L E D P ool L ight L E D P ool L ight Feature Module No.: Led Underwater/Fountain light IL-7F01-RGB; Protection degree: IP68; Materials: Stainless steel S304 trim, stainless housing; Led qty / Power comsumption: 1.5W*7 pcs RGB 3in1 / 10.5W ; Led qty / Power comsumption: 3W*7 pcs RGB 3in1 / 18.7W ; View angle: 25 / 45 degrees; Light colors available: RGB(3 chips in 1 led) ; Working Voltage: 12V & 24V DC; Brass cable gland; 5mm / 10mm tempered glass; Power and driver; Silicone gasket; Average lifetime: 40,000-50,000 hrs. Power Swimming pool light; Fountain light; Fish ponds; Artificial waterfalls and rockeries; Lawn. L E D P ool L ight L E D P ool L ight 49 Application 50  OE M W a rra nty P olic y Warranty Policy 1. All products are, at the time of shipment, warranted to be free from defects in material and workmanship under normal service and use, provided that installation or renewal is in accordance with manufacturer's instructions. 2. The warranty lasts 3years, counting from the date of shipment from ARK. 3. If any product(s) appears not to meet the warranty specified above, and then after ARK has examined and tested the allegedly non-complying product(s) and found said product(s) to be in fact defective within the above warranty, ARK will at its option either furnish a replacement for or issue a credit for the purchase price of product(s) thereof which proves to be not in compliance with the aforesaid warranty. 4. The fitting of a replacement supplied free of charge under warranty does not extend the original warranty period cover. 5. ARK does not automatically accept liability for associated or consequential loss of any kind whatsoever, but due consideration will be given in cases where product(s) is confirmed as defective after examination and test. 6. This warranty does not apply to any failures which prove to be the result of misuse, negligence, accident, maladjustment or repair. Sales Support Sales Support ARK ARK 51 52  W a rra nty P olic y Warranty Policy Data P r o d uc t 3 y e a rs 5 y e a rs LED Cabinet Light Light Light LED Panel Underwater LED Flexible Light LED Ragid Light Bar LED Flourescent Tube LED Downlight LED Wall Washer LED Bulb Led Control Pool Light What excluded from coverage is as following: (a) Damage that result from abuse and misuse such as improper operation, storage, accident or neglect; (b) The defects during shipping; (c) Defects or damages resulting from the use of Non-TOPO branded or certified products, accessories or other equipment; (d) Other acts which are not the fault of TOPO. This warranty is the only one TOPO warranty, no other exists. Warranty Policy Warranty Policy 53 54
