Modeling a Philips screwdriver
I wrote this tut in order not to forget, and the other reason is to use it in the future.
I am confident there are better ways, but this is my own way after struggling with the solution.
One needs 2 cylinders and Cone object.
1.
One needs to create another such cylinder and place it for later.
2. Next one needs a Cone object to place with the cylinder:
Pay special attention to
the position of the cone, since it’s critical for the next step.
3. Activate the Boole function, like this:
right, one should see this:
4. Now It’s time to bring the other cylinder, prepared in advance:
if everything goes

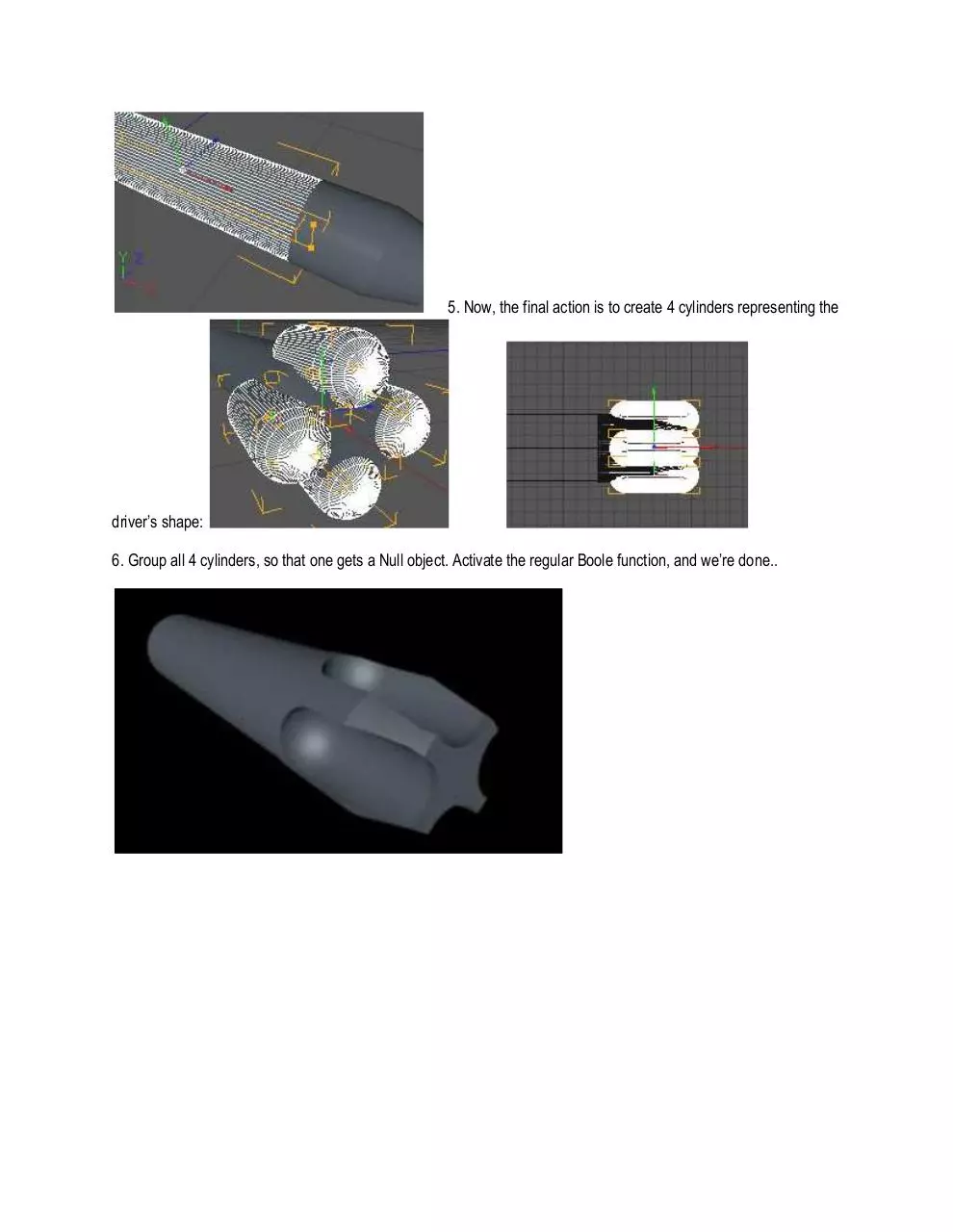

5. Now, the final action is to create 4 cylinders representing the
driver’s shape:
6. Group all 4 cylinders, so that one gets a Null object. Activate the regular Boole function, and we’re done..
