IP Valueline IP67 BS

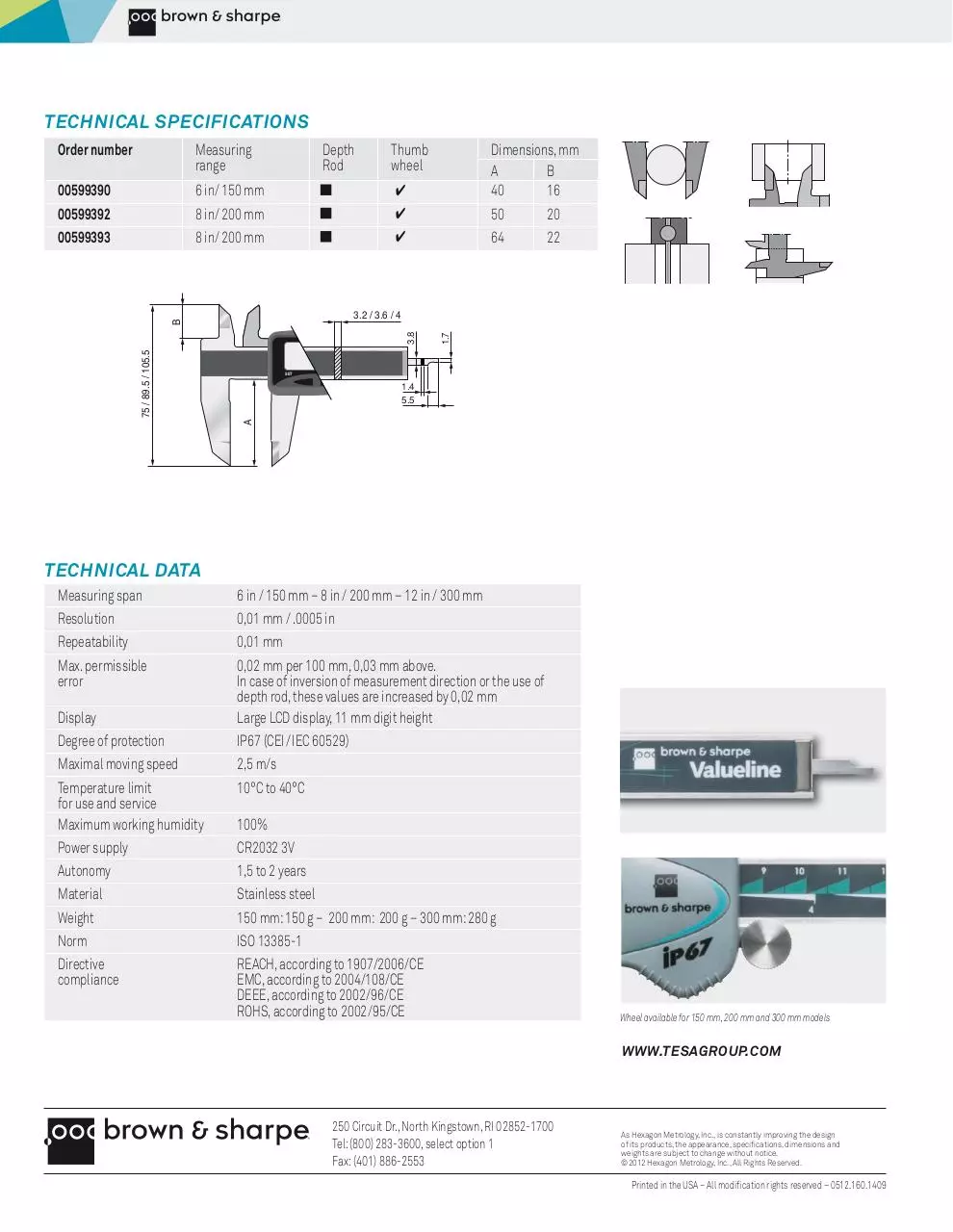

PRODUCT INFO Electronic Calipers VALUELINE IP67 — 6 in/ 150 mm — 8 in/ 200 mm — 12 in/ 300 mm Patent pending UNIQUE FEATURES: – IP67 TOTAL PROTECTION AGAINST DUST AND LIQUIDS – UP TO 2 YEARS AUTONOMY – ABS AND REL MEASURING MODE – RECTANGULAR DEPTH ROD – COMPLIANT WITH ISO 13385-1 STANDARD – 150 MM TO 300 MM MODELS WITH THUMB WHEEL – DESIGNED BY TESA VALUELINE LCD IP67 ABS  TECHNICAL SPECIFICATIONS Order number Measuring range 00599390 6 in/ 150 mm   ✔ Dimensions, mm A B 40 16 00599392 8 in/ 200 mm   ✔ 50 20 00599393 8 in/ 200 mm   ✔ 64 22 Depth Rod Thumb wheel 1.7 3.8 75 / 89.5 / 105.5 Ø1.5 B 3.2 / 3.6 / 4 A 1.4 5.5 15. 5 / 15.5 / 15.5 SET TECHNICAL DATA Measuring span 6 in / 150 mm – 8 in / 200 mm – 12 in / 300 mm Resolution 0,01 mm / .0005 in Repeatability 0,01 mm Max. permissible error Display 0,02 mm per 100 mm, 0,03 mm above. In case of inversion of measurement direction or the use of depth rod, these values are increased by 0,02 mm Large LCD display, 11 mm digit height Degree of protection IP67 (CEI / IEC 60529) Maximal moving speed 2,5 m/s Temperature limit for use and service Maximum working humidity 10°C to 40°C Power supply CR2032 3V Autonomy 1,5 to 2 years Material Stainless steel Weight 150 mm: 150 g – 200 mm: 200 g – 300 mm: 280 g Norm ISO 13385-1 Directive compliance REACH, according to 1907/2006/CE EMC, according to 2004/108/CE DEEE, according to 2002/96/CE ROHS, according to 2002/95/CE 100% Wheel available for 150 mm, 200 mm and 300 mm models WWW.TESAGROUP.COM 250 Circuit Dr., North Kingstown, RI 02852-1700 Tel: (800) 283-3600, select option 1 Fax: (401) 886-2553 As Hexagon Metrology, Inc., is constantly improving the design of its products, the appearance, specifications, dimensions and weights are subject to change without notice. ©2012 Hexagon Metrology, Inc., All Rights Reserved. Printed in the USA – All modification rights reserved – 0512.160.1409
