BlueOptics BO05E15620 SFP Transceiver 1550nm 20KM

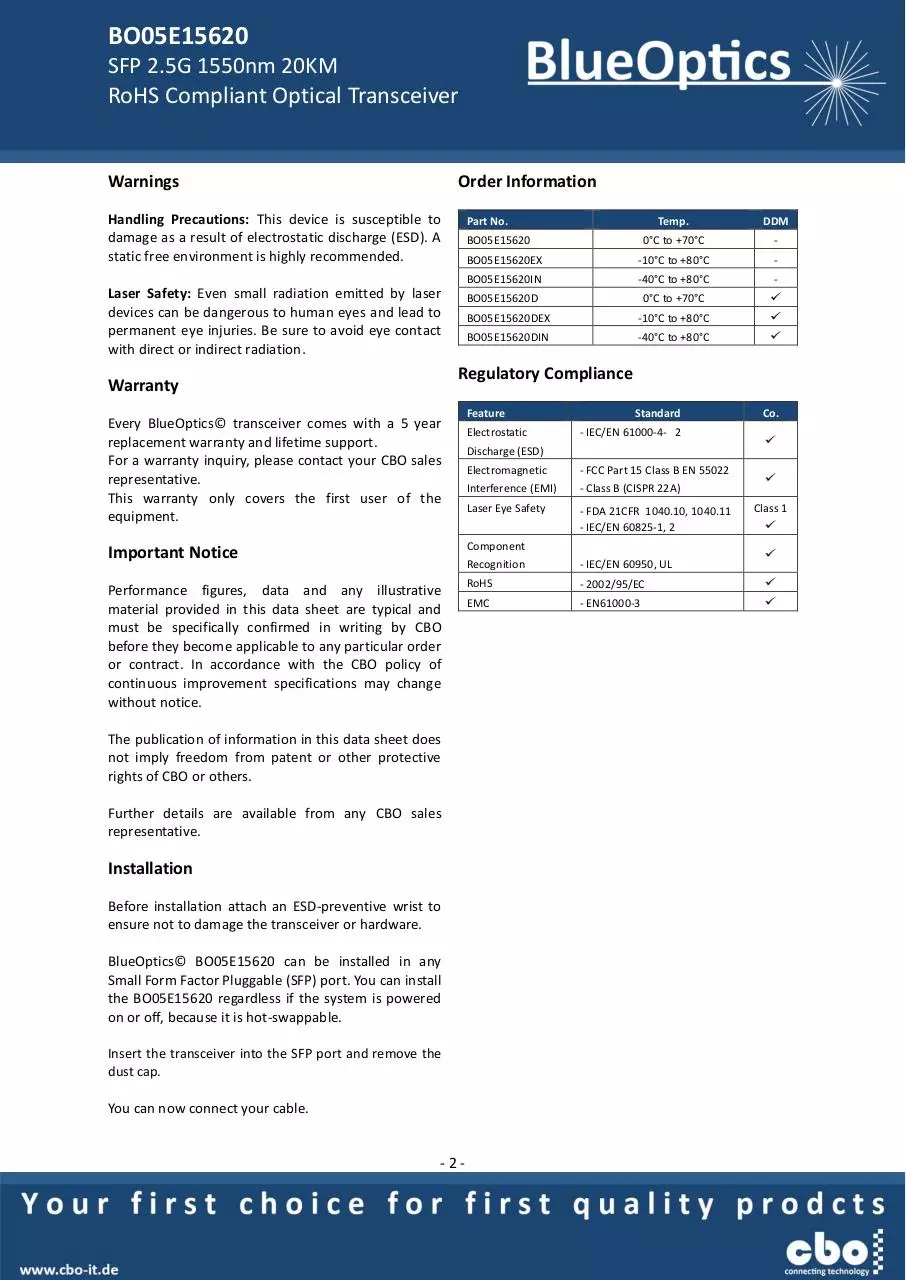

BO05E15620 SFP 2.5G 1550nm 20KM RoHS Compliant Optical Transceiver SFP 2.5G 1550nm Single mode Optical Transceiver Features Description The BlueOptics© BO05E15620 SFP transceiver is a high performance, cost effective module supporting a data rate up to 2.5Gbps with 20 Kilometer link length on single mode fiber. BlueOptics© transceivers are 100% compliant with SFP Multi-Source Agreement (MSA). All BlueOptics© SFP transceivers can be equipped with digital diagnostic function compliant to MSA SFF8472. Using digital diagnostic, BlueOptics© SFP transceivers provide the following real time information: - Supply voltage Laser bias current Laser average output power Laser received input power Temperature The transceiver consists of five sections: A DFB transmitter, a PIN photodiode, a trans-impedance preamplifier (TIA), the LD Driver and the digital diagnostic function. Applications  1x / 2x Fibre Channel  Gigabit Ethernet  SDH / SONET  Router/Server Interface  Other optical links -1-  2.5Gb/s serial optical interface  DFB laser transmitter  PIN photo-detector  Hot-pluggable SFP footprint compliant to SFF-8074i  Duplex LC/UPC interface  2-wire interface for management  Metal enclosure, for lower EMI  RoHS compliant and lead-free  Single +3.3V power supply  Compliant with SFF-8472  Case operating temperature - type pluggable Commercial: 0°C to +70°C Extended: -10°C to +80°C Industrial: -40°C to +85°C optical  BO05E15620 SFP 2.5G 1550nm 20KM RoHS Compliant Optical Transceiver Warnings Order Information Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Part No. BO05E15620 Laser Safety: Even small radiation emitted by laser devices can be dangerous to human eyes and lead to permanent eye injuries. Be sure to avoid eye contact with direct or indirect radiation. Temp. DDM 0°C to +70°C - BO05E15620EX -10°C to +80°C - BO05E15620IN -40°C to +80°C - BO05E15620D 0°C to +70°C BO05E15620DEX -10°C to +80°C BO05E15620DIN -40°C to +80°C Regulatory Compliance Warranty Every BlueOptics© transceiver comes with a 5 year replacement warranty and lifetime support. For a warranty inquiry, please contact your CBO sales representative. This warranty only covers the first user of the equipment. Feature Electrostatic Standard Discharge (ESD) Electromagnetic - FCC Part 15 Class B EN 55022 Interference (EMI) - Class B (CISPR 22A) Laser Eye Safety - FDA 21CFR 1040.10, 1040.11 - IEC/EN 60825-1, 2 Important Notice Component Recognition - IEC/EN 60950, UL Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by CBO before they become applicable to any particular order or contract. In accordance with the CBO policy of continuous improvement specifications may change without notice. RoHS - 2002/95/EC EMC - EN61000-3 The publication of information in this data sheet does not imply freedom from patent or other protective rights of CBO or others. Further details are available from any CBO sales representative. Installation Before installation attach an ESD-preventive wrist to ensure not to damage the transceiver or hardware. BlueOptics© BO05E15620 can be installed in any Small Form Factor Pluggable (SFP) port. You can install the BO05E15620 regardless if the system is powered on or off, because it is hot-swappable. Insert the transceiver into the SFP port and remove the dust cap. You can now connect your cable. -2- Co. - IEC/EN 61000-4- 2 Class 1  BO05E15620 SFP 2.5G 1550nm 20KM RoHS Compliant Optical Transceiver 1. Absolute Maximum Ratings Parameter Storage Temperature Storage Ambient Humidity Symbol Ts HA Min. -40 5 Typ. Max. 85 95 Unit ºC % 2. Recommended Operating Conditions Parameter Symbol Case Operating Temperature Min. 0 Tcase Ambient Humidity Data Rate Transmission Distance Coupled Fiber HA Typ. Max. 70 Unit -10 80 ºC -40 85 Note BO05E15620 BO05E15620D BO05E15620EX BO05E15620DEX BO05E15620IN BO05E15620DIN 5 70 % Mbps KM TX Rate/RX Rate 2500/2500 20 Single mode fiber 9/125µm MMF 3. Electrical Interface Characteristics Parameter Transmitter Total Supply Current Transmitter Disable Input-High Transmitter Disable Input-Low Transmitter Fault Input-High Transmitter Fault Input-Low Receiver Total Supply Current LOSS Output Voltage-High LOSS Output Voltage-Low Symbol Min. ICC VDISH VDISL VTxFH VTxFL 2 0 2 0 ICC VLOSH VLOSL Typ. 2 0 Max. Unit Note A Vcc+0.3 0.8 Vcc+0.3 0.8 mA V V V V 1 B mA V V 1 Vcc+0.3 0.8 Notes: 1. A (TX) + B (RX) = 280mA (without termination circuit) 4. Transmitter Specifications - Optical Parameter Average Output Power Extinction Ratio Center Wavelength Side Mode Suppression Ratio Spectrum Bandwidth(-20dB) Transmitter OFF Output Power Differential Line Input Impedance Jitter P-P Output Eye Mask Symbol POUT ER λC SMSR σ POff RIN tJ Min. -5 8.2 1530 30 90 Typ. Max. 0 1550 1570 100 1 -45 110 0.1 Unit dBm dB nm dB nm dBm Ohm UI Compliant with G.957(class 1 laser safety) -3- Note DFB Laser  BO05E15620 SFP 2.5G 1550nm 20KM RoHS Compliant Optical Transceiver 5. Receiver Specifications - Optical Parameter Input Optical Wavelength Receiver Sensitivity Input Saturation Power (Overload) LOS Assert LOS De-assert LOS Hysteresis 1. Symbol λIN PIN PSAT PA PD PA-PD Min. 1270 Typ. Max. 1610 -19 0 -35 0.5 2.0 -20 6.0 Unit nm dBM dBm dBm dBm dB Note 1 Notes: -12 7 Measured with Light source 1550nm, ER=9dB; BER =<10 @PRBS=2 -1 non-return-to-zero. 6. SFP to Host Connector Pin Out Pin 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1. 2. 3. Symbol VEET TFAULT TDIS MOD_DEF(2) MOD_DEF(1) MOD_DEF(0) RS0 LOS VEER VEER VEER RDRD+ VEER VCCR VCCT VEET TD+ TDVEET Name / Description Transmitter Ground (Common with Receiver Ground) Transmitter Fault indication Transmitter Disable Module Definition 2. Data line for Serial ID. Module Definition 1. Data line for Serial ID. Module Definition 0. Data line for Serial ID. Rate Select 0 Loss of Signal indication Receiver Ground (Common with Transmitter Ground) Receiver Ground (Common with Transmitter Ground) Receiver Ground (Common with Transmitter Ground) Inv. Received Data Out Received Data Out Receiver Ground (Common with Transmitter Ground) Receiver Power Supply Transmitter Power Transmitter Ground (Common with Receiver Ground) Transmit Data In Inv. Transmit Data In Transmitter Ground (Common with Receiver Ground) Notes: Circuit ground is internally isolated from chassis ground. TDis is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7k~10kΩ resistor. Its states are: Low (0 to 0.8V): Transmitter on (>0.8V, < 2.0V): Undefined High (2.0 to 3.465V): Transmitter Disabled Open: Transmitter Disabled Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7k~10kΩ resistor on the host board. The pull-up voltage shall be VccT or VccR. Mod-Def 0 is grounded by the module to indicate that the module is present Mod-Def 1 is the clock line of two wire serial interface for serial ID Mod-Def 2 is the data line of two wire serial interface for serial ID -4- Note 1 2 3 3 3 4 1 1 1 1 1 1  BO05E15620 SFP 2.5G 1550nm 20KM RoHS Compliant Optical Transceiver 4. LOS is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor. Pull up voltage between 2.0V and Vcc+0.3V. Logic 1 indicates loss of signal; Logic 0 indicates normal operation. In the low state, the output will be pulled to less than 0.8V. Pinout of Connector Block on Host Board 7. EEPROM Information The SFP MSA defines a 256-byte memory map in EEPROM describing the transceivers capabilities, standard interfaces, manufacturer, and other information, which is accessible over a 2 wire serial interface at the 8-bit address 1010000X (A0h). Data Address 0 1 2 3-10 11 12 13 14 15 16 17 18 29 Field Size (Bytes) 1 1 1 8 1 1 1 1 1 1 1 1 Name of Field Contents (Hex) Description Identifier Ext. Identifier Connector Transceiver Encoding BR, Nominal Reserved Length (9μm) km Length (9μm) 100m Length (50μm) 10m Length(62.5μm)10m Length (Copper) Formfactor 1 16 Reserved 1 3 16 Reserved Vendor OUI 56-59 60-61 4 2 Vendor rev Wavelength XX XX XX XX XX XX XX XX XX XX XX XX XX 00 XX XX XX XX XX 00 XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX 00 XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX 62 1 Reserved 00 30-35 36 37-39 40-55 Vendor name Vendor PN -5- Transmittter Code Transceiver Speed Max. link length in KM Max. link length in M Max. link length in M Max. link length in M Max. link length in M Vendor name - OEM Product Number depending on Part Vendor revision Transceiver Wavelength  BO05E15620 SFP 2.5G 1550nm 20KM RoHS Compliant Optical Transceiver 63 1 64-65 66 67 68-83 2 1 1 16 Options BR, max BR, min 84-91 92 93 94 95 8 1 1 1 1 Vendor date code Diagnostic type Enhanced option SFF-8472 96-255 160 XX CC BASE XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX 20 20 XX XX XX XX Vendor SN CC_EXT Checksum of bytes 062 Part serial number Year, Month, Day Diagnostics Diagnostics Diagnostics Checksum of bytes 6494 Vendor Specific 8. Digital Diagnostics / Digital Optical Monitoring The transceiver provides serial ID memory contents and diagnostic information about the present operating conditions by the 2-wire serial interface (SCL, SDA). The diagnostic information with internal calibration or external calibration are all implemented, including received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring. 9. Recommended Interface Circuit -6-  BO05E15620 SFP 2.5G 1550nm 20KM RoHS Compliant Optical Transceiver 10. Mechanical Specifications (Unit: mm) Contact Information CBO GmbH Friedhofstraße 25 45478 Mülheim an der Ruhr Germany Tel.: Fax.: eMail: web: 0049 – 208 – 777 247 - 0 0049 – 208 – 777 247 - 99 info@cbo-it.de www.cbo-it.de -7-
